Philips
8720169014107
Electrical unit for light-line system
Manufacturer part number: 8720169014107
Serie: StoreSet
Type: Track armatuur
EAN-code: 8720169014107
SKU Omnical: 4171814
Stock: 0.
Estimated lead time: 25 days *
PreOrder
P77
€
360,00
per item
€
293,04
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
8720169014107 Philips Electrical unit for light-line system

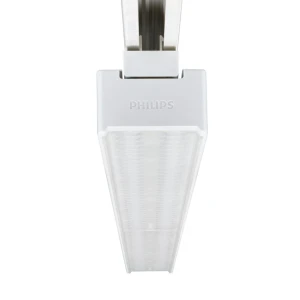

Philips Electrical unit for light-line system SM504T 80S/PW930 DIA-VLC A20 WH
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Lamp type
LED not exchangeable
Lamp holder
Other
Suitable for number of lamps
4
Width
(mm)
64
Type of control gear
LED operating device current-controlled
With control gear
Yes
Suitable for emergency lighting
No
Nominal voltage
(V)
220 - 240
Material housing
Aluminium
Colour housing
White
Reflector
None
Light sharing
Asymmetric
Light outlet
Direct
Length
(mm)
1153
Protection class
I
Degree of protection (IP)
IP20
With light source
Yes
Voltage type
AC
Nominal current
(mA)
394 - 394
Height/depth
(mm)
74
Rated luminous flux according to IEC 62722-2-1
(lm)
7800
Colour of light
White
Colour temperature
(K)
3000 - 3000
Colour rendering index CRI
90-100
LED nominal current at constant current
(mA)
252 - 252
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
Yes
Dimming DMX
No
Dimming manufacturer's proprietary system
No
Dimming DSI
No
Dimming potentiometer (integrated)
No
Dimming GPRS
No
Dimming LineSwitch
No
Dimming mains voltage modulation
No
Dimming phase cut-off
No
Dimming phase cut-on
No
Dimming programmable
No
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming with push-button
No
No dim function
No
Light distributor
Diffuser lens/optic/panel
Beam angle
Narrow beam 11 - 20°
Colour consistency (McAdam ellipse)
SDCM3
Rated life time L70/B50 at 25 °C
(h)
70000
Filament test according to IEC 60695-2-11
650 °C - 30 s
Emergency power supply integrated
No
Max. system power
(W)
58
Luminaire efficacy
(lm/W)
134
Power factor
0.9
Type of wiring
Ending
Number of poles
5
Conductor cross section
(mm²)
0.5
Connection type
Other
Exchangeable control gear
Yes
Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq)
(%)
90
Failure rate at median useful life of 50,000 h at 25 °C ambient (tq)
(%)
10
Failure rate at median useful life of 100,000 h at 25 °C ambient (tq)
(%)
10
Constant light output (CLO)
No
Beam angle adjustable
No
Colour temperature adjustable
No
Luminous flux adjustable
No
D
Operation by Bluetooth
No
Compatible with Casambi
No
Total harmonic distortion
20
Rated ambient temperature according to IEC62722-2-1
(°C)
25 - 25
Stock and logistics
Height
0.09 m
Width
0.08 m
Depth
1.2 m
Packaging
box
Weight
2 kg
HS code
94051190
