Phoenix Contact
3046809
Component terminal block
Manufacturer part number: 3046809
Serie: Componentenaansluitklem
Type: UTTB 4-DIO/O-U
EAN-code: 4046356167277
SKU Omnical: 2051734
Stock: 0.
Estimated lead time: 30 days *
PreOrder
ZTV
€
642,22
per 100 items
€
541,39
per 100 items
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

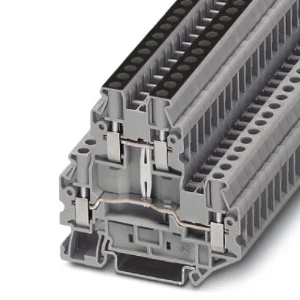

3046809 Phoenix Contact Component terminal block
Phoenix Contact Component terminal block UTTB 4-DIO/O-U
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Connectable conductor cross section fine-strand without cable end sleeve
(mm²)
0.14 - 6
Connectable conductor cross section fine-strand with cable end sleeve
(mm²)
0.14 - 0.14
Connectable conductor cross section solid-core
(mm²)
0.14 - 6
Connectable conductor cross section multi-wired
(mm²)
0.14 - 1.5
Width
(mm)
6.2
Rated current In
(A)
0.5
Rated voltage
(V)
800
Type of electrical connection 1
Screw connection
Type of electrical connection 2
Screw connection
Number of levels
2
Number of clamp positions per level
2
Internally connected stages
No
Mounting method
DIN rail (top hat rail) 35 mm
Material insulation body
Other
Operating temperature
(°C)
-60 - 105
Inflammability class of insulation material according to with UL94
V0
Width/grid dimension
(mm)
6.2
Length
(mm)
69.9
Closing plate required
Yes
Colour
Grey
Height
(mm)
69.9
Depth
(mm)
65
Stock and logistics
Height
0.076 m
Width
0.095 m
Depth
0.323 m
Packaging
box
Weight
0.02 kg
HS code
85369010
Country of Origin
PL
