Phoenix Contact
3064137
Component terminal block
Manufacturer part number: 3064137
Serie: Componentenaansluitklem
Type: UT 2,5-MTD-DIO/L-R
EAN-code: 4046356285926
SKU Omnical: 2051990
Stock: 0.
Estimated lead time: 28 days *
PreOrder
ZTV
€
356,86
per 100 items
€
300,83
per 100 items
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

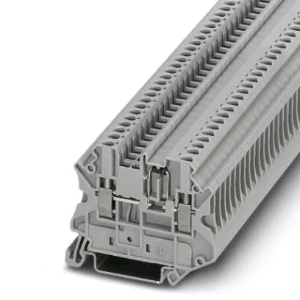

3064137 Phoenix Contact Component terminal block
Phoenix Contact Component terminal block UT 2,5-MTD-DIO/L-R
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Connectable conductor cross section fine-strand without cable end sleeve
(mm²)
0.14 - 4
Connectable conductor cross section fine-strand with cable end sleeve
(mm²)
0.14 - 0.14
Connectable conductor cross section solid-core
(mm²)
0.14 - 4
Connectable conductor cross section multi-wired
(mm²)
0.14 - 1.5
Width
(mm)
5.2
Rated current In
(A)
0.5
Rated voltage
(V)
800
Type of electrical connection 1
Screw connection
Type of electrical connection 2
Screw connection
Number of levels
1
Number of clamp positions per level
2
Internally connected stages
Yes
Mounting method
DIN rail (top hat rail) 35 mm
Material insulation body
Other
Inflammability class of insulation material according to with UL94
V0
Closing plate required
Yes
Colour
Grey
Height
(mm)
57.8
Depth
(mm)
47.5
Stock and logistics
Height
0.056 m
Width
0.079 m
Depth
0.245 m
Packaging
box
Weight
0.009 kg
HS code
85369010
Country of Origin
PL
