Phoenix Contact
3070613

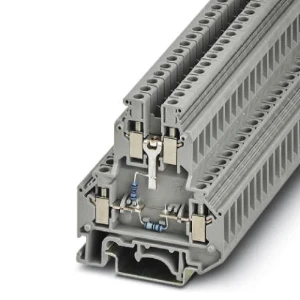

Component terminal block
Manufacturer part number: 3070613
Serie: Componentenaansluitklem
Type: UKK 5-2R/1K4/UL-UR/10K/O-UL
EAN-code: 4046356580670
SKU Omnical: 3063252
Stock: 0.
Estimated lead time: 11 days *
PreOrder
ZTV
€
1.482,99
per 100 items
€
1.250,16
per 100 items
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
3070613 Phoenix Contact Component terminal block
Phoenix Contact Component terminal block UKK 5-2R/1K4/UL-UR/10K/O-UL
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Connectable conductor cross section fine-strand without cable end sleeve
(mm²)
0.2 - 4
Connectable conductor cross section fine-strand with cable end sleeve
(mm²)
0.25 - 0.25
Connectable conductor cross section solid-core
(mm²)
0.2 - 4
Connectable conductor cross section multi-wired
(mm²)
0.2 - 1.5
Width
(mm)
6.2
Rated current In
(A)
32
Rated voltage
(V)
500
Type of electrical connection 1
Screw connection
Type of electrical connection 2
Screw connection
Number of levels
2
Number of clamp positions per level
2
Internally connected stages
No
Mounting method
DIN rail (top hat rail) 35 mm
Material insulation body
Other
Operating temperature
(°C)
-60 - 105
Inflammability class of insulation material according to with UL94
V0
Width/grid dimension
(mm)
6.2
Length
(mm)
56
Closing plate required
Yes
Colour
Grey
Height
(mm)
56
Depth
(mm)
62
Stock and logistics
Height
0.073 m
Width
0.075 m
Depth
0.246 m
Packaging
box
Weight
0.016 kg
HS code
85369010
Country of Origin
CN
