Lapp
0091231

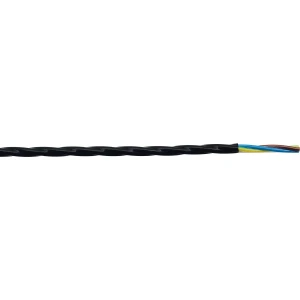

Power cable < 1 kV, for moving application
Manufacturer part number: 0091231
Serie: ÖLFLEX HEAT 205 MC
Type: ÖLFLEX HEAT 205 MC
EAN-code: 4044773071801
SKU Omnical: 2565356
Stock: 0.
Estimated lead time: 8 days *
PreOrder
YKN
$
531.78
per 50 items
$
361.08
per 50 items
USD | Excluding VAT
Quantity
x 50 items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
0091231 Lapp Power cable < 1 kV, for moving application
Lapp Power cable < 1 kV, for moving application 0091231/50 ÖLFLEX HEAT 205 MC 3G1
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Number of cores
3
Nominal cross section conductor
(mm²)
1
With protective conductor
Yes
Core identification
Colour
Colour outer sheath
Black
Conductor material
Copper
Conductor surface
Tinned
Conductor category
Class 5 = flexible
Material core insulation
Fluorinated ethylene propylene (FEP)
Specification core insulation
Other
Material outer sheath
Other
Specification material outer sheath
Other
Cable geometry
Round
Low smoke (according to EN 61034-2)
No
Outer diameter approx.
(mm)
5
Min. permitted bending radius, moving application/free movement
(mm)
75
Min. permitted bending radius, stationary application/permanent installation
(mm)
20
Permitted cable outer temperature during assembling/handling
(°C)
0 - 0
Permitted cable outer temperature after assembling without vibration
(°C)
-100 - 205
Nominal voltage U0
(V)
300
Nominal voltage U
(V)
500
No
No
No
No
No
No
Low smoke according to IEC 61034-2
No
No
Halogen free according to IEC 60754-2
No
No
Stock and logistics
Packaging
ring
Weight
0.056 kg
HS code
85444995
