Lapp
1002142
Power cable < 1 kV, for moving application
Manufacturer part number: 1002142
Serie: ÖLFLEX CLASSIC 110 H SF
Type: ÖLFLEX CLASSIC 110 H SF
EAN-code: 4044777898190
SKU Omnical: 2679281
Stock: 0.
Estimated lead time: 9 days *
PreOrder
YKD
€
540,88
per 100 meter
€
367,26
per 100 meter
EUR | Excluding VAT
Quantity
x 1 meter
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
1002142 Lapp Power cable < 1 kV, for moving application

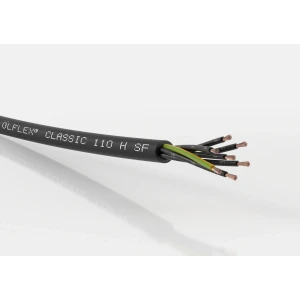

Lapp Power cable < 1 kV, for moving application ÖLFLEX CLASSIC 110 H SF 5G1 - 1 MTR
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Number of cores
5
Nominal cross section conductor
(mm²)
1
With protective conductor
Yes
Core identification
Numbers
Colour outer sheath
Black
Conductor material
Copper
Conductor surface
Bare
Conductor category
Class E = very flexible
Material core insulation
Other
Specification core insulation
Other
Material outer sheath
Other
Specification material outer sheath
Other
Cable geometry
Round
Halogen free according to EN 60754-1/2
Yes
Outer diameter approx.
(mm)
7.3
Min. permitted bending radius, moving application/free movement
(mm)
73
Min. permitted bending radius, stationary application/permanent installation
(mm)
29.2
Permitted cable outer temperature during assembling/handling
(°C)
-30 - 70
Permitted cable outer temperature after assembling without vibration
(°C)
-40 - 80
Nominal voltage U0
(V)
300
Nominal voltage U
(V)
500
Yes
No
No
No
No
Yes
Low smoke according to IEC 61034-2
Yes
Yes
Halogen free according to IEC 60754-2
No
No
Stock and logistics
Weight
0.123 kg
HS code
85444995
Country of Origin
FR
