Lapp
2170894
Data and communication cable
Manufacturer part number: 2170894
Serie: ETHERLINE
Type: Profin.2p cab.Cat.5/
EAN-code: 4044773114713
SKU Omnical: 2688343
Stock:
585 x 1 meter.
Delivery time: 1-2 business days.
InStock
YLV
$
709.82
per 100 meter
$
481.97
per 100 meter
USD | Excluding VAT
Quantity
x 1 meter
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
2170894 Lapp Data and communication cable

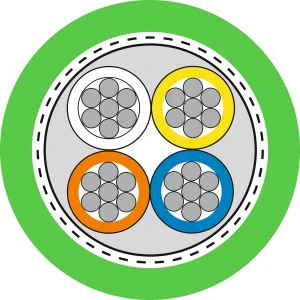

Lapp Data and communication cable ETHERLINE FD P FC CAT5 2x2xAWG22 - 1 MTR
Datasheet
Conductor material
Copper
Conductor surface
Tinned
Nominal cross section conductor
(mm²)
2
AWG size
Other
Conductor category
Class 2 = stranded
Number of cores
2
Stranding element
Quad
Material core insulation
Other
Specification core insulation
Polyethylene (PE)
Core identification
Colour
Screen over stranding element
None
Screen over stranding
Foil + braiding
Material outer sheath
Polyurethane (PUR)
Colour outer sheath
Green
Cable geometry
Round
Halogen free according to EN 60754-1/2
No
Halogen free according to EN IEC 60754-2
No
Low smoke (according to EN 61034-2)
No
Low smoke according to EN IEC 61034-2
No
Oil resistant according to EN IEC 60811-404
No
Outer diameter approximate
(mm)
6.5
Min. permitted bending radius, moving application with forced guidance
(mm)
52
Min. permitted bending radius, moving application/free movement
(mm)
52
Min. permitted bending radius, stationary application/permanent installation
(mm)
52
Permitted cable outer temperature during assembling/handling
(°C)
-20 - 60
Permitted cable outer temperature after assembling without vibration
(°C)
-30 - 70
Category
5
NVP value
(%)
67
UV resistant
Yes
Flame retardant according to IEC 60332-1-2
No
Flame retardant according to IEC 60332-3-21 (Cat A F/R)
No
Flame retardant according to IEC 60332-3-22 (Cat A)
No
Flame retardant according to IEC 60332-3-23 (Cat B)
No
Flame retardant according to IEC 60332-3-24 (Cat C)
No
Flame retardant according to IEC 60332-3-25 (Cat D)
No
Halogen free according to EN IEC 60754-1
No
Halogen free according to EN IEC 60754-3
No
