Schneider Electric
A9L16337
Surge protection device for data networks/MCR-technology
Manufacturer part number: A9L16337
Serie: PF'clic, PRC'clic
EAN-code: 3606480383519
SKU Omnical: 2086984
Stock: 0.
Estimated lead time: 10 days *
PreOrder
ZZL
$
257.92
per item
$
175.13
per item
CAD | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

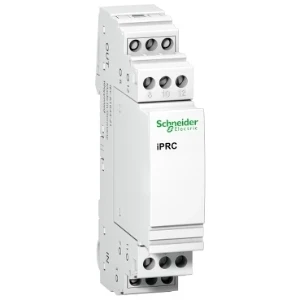

A9L16337 Schneider Electric Surge protection device for data networks/MCR-technology
Schneider Electric Surge protection device for data networks/MCR-technology PRC - Overspanningsbeveiliging - Telecom 2P - In=10kA/Ue=130V - Type 2
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Nominal voltage AC
(V)
130 - 130
Max. continuous voltage AC
(V)
130
Max. continuous voltage DC
(V)
180
Nominal discharge surge current (8/20)
(kA)
10
Nominal load current
(A)
0.45
Voltage protection level core/core
(V)
160
Voltage protection level core/earth
(V)
200
Voltage protection level core/signal ground
(V)
200
Voltage protection level signal ground/protective ground
(V)
160
Limiting frequency
(MHz)
0.05
Mounting method
DIN rail (top hat rail) 35 mm
Connection 1
Screw terminal
Pro-active thermo-control
Yes
With remote signalling contact
No
Signalling at the device
None
Explosion-tested version
No
Signal disconnection
Yes
Number of conductors (without earthing)
2
Earthing via
Separate conductor
Assembly width
(mm)
18
Degree of protection (IP)
IP20
Stock and logistics
Height
0.02 cm
Width
0.067 cm
Depth
0.095 cm
Packaging
box
Weight
0.069 kg
HS code
8536301000
Country of Origin
DE
