Schneider Electric
CCT5010-0003
Dimmer
Manufacturer part number: CCT5010-0003
Serie:
EAN-code: 3606486863121
SKU Omnical: 4406237
Stock: 0.
Estimated lead time: 6 days *
PreOrder
B75
€
58,50
per item
€
51,42
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

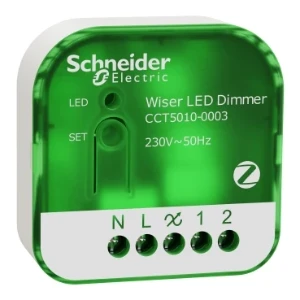

CCT5010-0003 Schneider Electric Dimmer
Schneider Electric Dimmer WISER inbouwmodule multiwire LED dimmer - 0-200W ZIGBEE
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Assembly arrangement
Basic element
Method of operation
Other
Serial dimmer
No
Type of load
Capacitive load
Substation input
Yes
Light value memory
Yes
Applicable with button
Yes
Applicable with movement sensor
No
Applicable with presence indicator
No
Applicable with time switch/timer
Yes
Applicable with transmission button
Yes
Applicable with infrared button
No
Mounting method
Flush mounted (plaster)
Material
Other
Material quality
Other
Halogen free
Yes
Surface protection
Untreated
Colour
Green
Transparent
Yes
Suitable for degree of protection (IP)
IP20
Frequency
(Hz)
50
Device width
(mm)
45
Device height
(mm)
45
Device depth
(mm)
18.5
Nominal voltage
(V)
230
App control via Bluetooth
No
Dimming phase cut-on
No
Dimming phase cut-off
Yes
Impact strength
IK02
Nominal power resistive load
(W)
0
Nominal power capacitive load
(VA)
0
Connection type
Screwed terminal
Core cross section
(mm²)
1.5
Min. depth of built-in installation box
(mm)
25
Max. switching power LED
(W)
200
Compatible with Apple HomeKit
Yes
Compatible with Google Assistant
Yes
Compatible with Amazon Alexa
Yes
IFTTT support available
No
Stock and logistics
Height
0.043 cm
Width
0.077 cm
Depth
0.08 cm
Packaging
box
Weight
0.06 kg
HS code
8536501900
Country of Origin
DE
