Schneider Electric

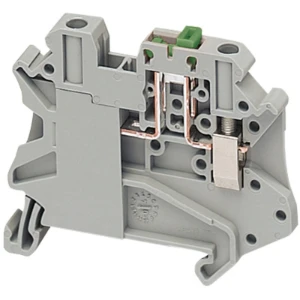

NSYTRV42SC
(Knife) disconnect terminal block
Manufacturer part number: NSYTRV42SC
Serie: Linergy klemblokken en aansluitbokk
EAN-code: 3606480532276
SKU Omnical: 2095237
Stock: 0.
Estimated lead time: 10 days *
PreOrder
T73
$
1,570.50
per 100 items
$
942.30
per 100 items
CAD | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
NSYTRV42SC Schneider Electric (Knife) disconnect terminal block
Schneider Electric (Knife) disconnect terminal block Linergy - Mes scheidingsklem - 4mm² - 20A - Enkel niveau - Grijs
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Connectable conductor cross section fine-strand without cable end sleeve
(mm²)
0.14 - 6
Connectable conductor cross section fine-strand with cable end sleeve
(mm²)
0.14 - 6
Connectable conductor cross section solid-core
(mm²)
0.14 - 6
Connectable conductor cross section multi-wired
(mm²)
0.14 - 6
Rated current In
(A)
20
Width
(mm)
6.2
Rated voltage
(V)
500
Type of electrical connection 1
Screw connection
Type of electrical connection 2
Screw connection
Connection position
Sideways
Number of levels
1
Number of clamp positions per level
1
Internally connected stages
No
Mounting method
DIN rail (top hat rail) 35 mm
Material insulation body
Thermoplastic
Inflammability class of insulation material according to with UL94
V0
Operating temperature
(°C)
-40 - 130
Width/grid dimension
(mm)
6.2
Height at lowest possible mounting height
(mm)
49.1
Closing plate required
Yes
Colour
Grey
Type of slitting
Swivelling
Type of cross disconnection
Swivelling
With integrated test socket
No
Length
(mm)
57.8
Height
(mm)
49.1
Depth
(mm)
57.8
Stock and logistics
Height
5.6 cm
Width
8.3 cm
Depth
5.4 cm
Packaging
box
Weight
0.012 kg
HS code
8536901000
Country of Origin
DE
