Weidmüller
0185760000
(Knife) disconnect terminal block
Manufacturer part number: 0185760000
Serie: SAK Series
Type: SAKRD/35
EAN-code: 4008190140595
SKU Omnical: 2201599
Stock: 0.
Estimated lead time: 17 days *
PreOrder
R51
$
34.90
per item
$
32.91
per item
USD | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

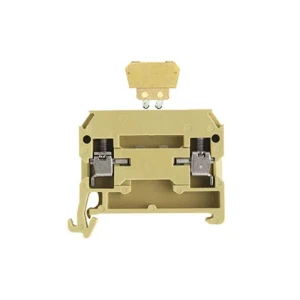

0185760000 Weidmüller (Knife) disconnect terminal block
SAK Series, Test-disconnect terminal, Rated cross-section: 4 mm¦, Screw connection, Beige, Direct mounting
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Connectable conductor cross section fine-strand without cable end sleeve
(mm²)
0.5 - 4
Connectable conductor cross section fine-strand with cable end sleeve
(mm²)
0.5 - 2.5
Connectable conductor cross section solid-core
(mm²)
0.5 - 4
Connectable conductor cross section multi-wired
(mm²)
1.5 - 4
Rated current In
(A)
10
Width
(mm)
6.5
Rated voltage
(V)
250
Type of electrical connection 1
Screw connection
Type of electrical connection 2
Screw connection
Connection position
Sideways
Number of levels
1
Number of clamp positions per level
2
Internally connected stages
No
Mounting method
DIN rail (top hat rail) 35 mm
Material insulation body
Thermoplastic
Inflammability class of insulation material according to with UL94
V2
Operating temperature
(°C)
-50 - 100
Width/grid dimension
(mm)
6.5
Height at lowest possible mounting height
(mm)
38
Closing plate required
Yes
Colour
Multi-coloured
Type of slitting
Pluggable
Type of cross disconnection
None
With integrated test socket
No
Length
(mm)
46
Height
(mm)
46
Depth
(mm)
38
Stock and logistics
Height
0.053 m
Width
0.124 m
Depth
0.176 m
Packaging
Package
Weight
0.641 kg
HS code
85369010
Country of Origin
RO
