ABB Busch-Jaeger
2CKA006800A2946

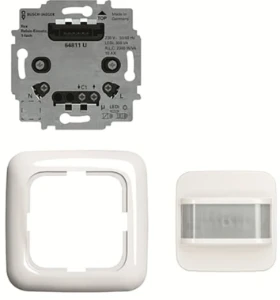

Movement sensor / presence detector complete
Manufacturer part number: 2CKA006800A2946
Serie: Reflex SI
Type: 64761 UJ-214
EAN-code: 4011395294994
SKU Omnical: 4098946
Stock: 0.
Estimated lead time: 9 days *
PreOrder
YST
€
153,00
per item
€
135,56
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
2CKA006800A2946 ABB Busch-Jaeger Movement sensor / presence detector complete
ABB Busch-Jaeger Movement sensor / presence detector complete BW 180 flex-set basic Reflex-214
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Model
Movement sensor
Constant light control
Yes
HVAC-control
Yes
Forced switch off
Yes
Animal zone
Yes
Width
(mm)
81
Creep-under protection
Yes
Networkable
Yes
Optimum mounting height
(m)
1.1
Staircase monitoring
Yes
Bridging switch
Yes
Max. transmission range sideways
(m)
12
Max. transmission range frontally
(m)
12
Suitable for wireless transmission
Yes
Remote operation
Yes
Response value sensitivity adjustable
Yes
Response value luminosity adjustable
Yes
With signal unit
Yes
Teach-function for response value luminosity
Yes
Dim function with dimmer basic element
Yes
Mounting method
Flush mounted (plaster)
Material
Plastic
Material quality
Thermoplastic
Halogen free
No
Surface protection
Untreated
Surface finishing
Glossy
Colour
White
RAL-number (similar)
9010
Transparent
Yes
Degree of protection (IP)
IP20
Voltage type
AC
Min. switch-on time
(s)
10
Max. duty cycle
(min)
30
Detection angle horizontal
(°)
13 - 180
Response value luminosity
(lx)
5 - 500
Max. switching power
(W)
2300
Temperature
(°C)
-25 - 45
Substation input
Yes
Frequency
(Hz)
50 - 50
With alarm function
Yes
Height
(mm)
81
Depth
(mm)
48
Sensor type
Passive infrared
With DALI interface
Yes
With remote control
Yes
Number of switching zones
1
Forced switch on
Yes
Suitable for ceiling mounting
Yes
Connection type
Screwed terminal
Anti-bacterial treatment
No
Built-in depth
(mm)
25
Built-in length
(mm)
25
Min. depth of built-in installation box
(mm)
25
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
Nominal voltage
(V)
230 - 230
Suitable for wall mounting
Yes
Stock and logistics
Height
0.09 m
Width
0.1 m
Depth
0.18 m
Packaging
Package
Weight
0.126 kg
HS code
85365080
