ABB Components
1SAM201907R1103
Rail terminal bar
Manufacturer part number: 1SAM201907R1103
Serie: Motorbeveiligingsschakelaar
Type: MS 1XX-S1-M3-25
EAN-code: 4013614400827
SKU Omnical: 2077671
Stock: 0.
Estimated lead time: 12 days *
PreOrder
ZQJ
€
28,70
per item
€
20,49
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

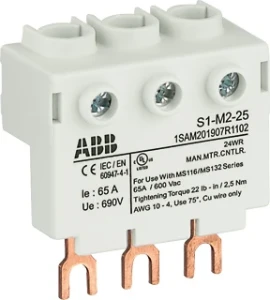

1SAM201907R1103 ABB Components Rail terminal bar
ABB Components Rail terminal bar Aansluitblok Hoog voor MS116/MS132, 25mm2,
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Number of poles
3
Connection type
Screwing
Number of connections < 6 mm²
0
Number of connections 10 mm²
0
Number of connections 16 mm²
0
Width
(mm)
45
Number of connections 25 mm²
3
Nominal current
(A)
65
Number of connections > 25 mm²
0
Number of connections total
3
Mounting method
Screw
Height
(mm)
32
Depth
(mm)
45
Contact safe
Yes
Number of inputs
3
Number of outputs
3
Suitable for solid conductors
Yes
Suitable for stranded conductors
Yes
Suitable for fine strand conductors
Yes
Suitable for fine strand conductors without cable end sleeve
Yes
Suitable for extra fine-strand conductors
Yes
Suitable for extra fine-strand conductors without cable end sleeve
Yes
Conductor cross section, input
(mm²)
2.5 - 25
Conductor cross section, output
(mm²)
2.5 - 25
Conductor cross section, input AWG
4 - 14
Stock and logistics
Height
0.038 m
Width
0.059 m
Depth
0.245 m
Packaging
Package
Weight
0.042 kg
HS code
85369010
