ABB Components
1SAM401920R1004
Phase busbar
Manufacturer part number: 1SAM401920R1004
Serie: Motorbeveiligingsschakelaar
Type: PS2-4-0-125
EAN-code: 4013614502163
SKU Omnical: 2264953
Stock: 0.
Estimated lead time: 70 days *
PreOrder
ZQJ
$
146.03
per item
$
104.26
per item
CAD | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

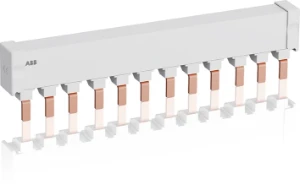

1SAM401920R1004 ABB Components Phase busbar
ABB Components Phase busbar 3-fase verzamelrail voor 4 MS165, Ie=125A
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Number of phases
3
Suitable for number of devices
4
Module width
(mm)
18
Cross section
(mm²)
25
Length
(mm)
225
Rated permanent current Iu
(A)
125
Type of electric connection
Pin
Insulated
Yes
Rated surge voltage
(kV)
8
Conditioned rated short-circuit current Iq
(kA)
100
Max. rated operation voltage Ue
(V)
690
Rated short-time withstand current lcw
(kA)
100
Suitable for devices with N-conductor
No
Suitable for devices with auxiliary switch
No
Number of poles
3
Width in number of modular spacings
12.8
Colour
Grey
Can be cut to size
No
Stock and logistics
Height
0.053 m
Width
0.225 m
Depth
0.022 m
Packaging
Package
Weight
0.226 kg
HS code
85366990
