ABB Components

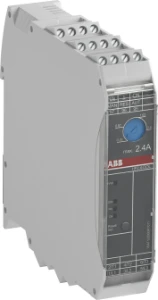

1SAT123000R1011
Motor starter/Motor starter combination
Manufacturer part number: 1SAT123000R1011
Serie: Elektronische starter / HF
Type: HF2.4-DOLE-24VDC
EAN-code: 4013614515613
SKU Omnical: 3054161
Stock: 0.
Estimated lead time: 8 days *
PreOrder
ZQF
€
263,00
per item
€
214,08
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
1SAT123000R1011 ABB Components Motor starter/Motor starter combination
ABB Components Motor starter/Motor starter combination Electronic Compact Starter DOL, thermischebeveiliging noodstop 0.75 kW
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Rated control supply voltage at AC 50 Hz
(V)
0 - 0
Rated control supply voltage at AC 60 Hz
(V)
0 - 0
Rated control supply voltage at DC
(V)
24 - 24
Voltage type for actuating
DC
Rated operation power at AC-3, 400 V
(kW)
0.75
Rated operation current Ie
(A)
2.4
Overload release current setting
(A)
0.18 - 2.4
With short-circuit release
No
Type of electrical connection of main circuit
Screw connection
Degree of protection (IP)
IP20
Type of motor starter
Direct online starter (DOL)
Rated operation power at AC-3, 230 V, 3-phase
(kW)
0.37
Rated operation current at AC-3, 400 V
(A)
2.4
Rated conditional short-circuit current, type 1, 480 Y/277 V
(A)
1000
Rated conditional short-circuit current, type 2, 230 V
(A)
1000
Rated conditional short-circuit current, type 2, 400 V
(A)
1000
Number of auxiliary contacts as normally open contact
1
Number of auxiliary contacts as normally closed contact
1
Ambient temperature, upper operating limit
(°C)
70
Temperature compensated overload protection
No
Release class
CLASS 10
Type of electrical connection for auxiliary- and control current circuit
Screw connection
Rail mounting possible
Yes
Supporting protocol for TCP/IP
No
Supporting protocol for PROFIBUS
No
Supporting protocol for CAN
No
Supporting protocol for INTERBUS
No
Supporting protocol for ASI
No
Supporting protocol for MODBUS
No
Supporting protocol for Data-Highway
No
Supporting protocol for DeviceNet
No
Supporting protocol for SUCONET
No
Supporting protocol for LON
No
Supporting protocol for PROFINET IO
No
Supporting protocol for PROFINET CBA
No
Supporting protocol for SERCOS
No
Supporting protocol for Foundation Fieldbus
No
Supporting protocol for EtherNet/IP
No
Supporting protocol for AS-Interface Safety at Work
No
Supporting protocol for DeviceNet Safety
No
Supporting protocol for INTERBUS-Safety
No
Supporting protocol for PROFIsafe
No
Supporting protocol for SafetyBUS p
No
Supporting protocol for other bus systems
No
With transformer
No
Number of command positions
16
Suitable for emergency stop
No
Number of indicator lights
4
External reset possible
Yes
With fuse
No
Power consumption
(W)
3.3
Stock and logistics
Height
0.034 m
Width
0.15 m
Depth
0.115 m
Packaging
Package
Weight
0.204 kg
HS code
85371098
