ABB Components
1SAX121001R1103

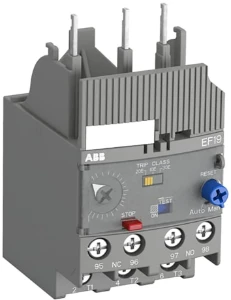

Electronic overload relay
Manufacturer part number: 1SAX121001R1103
Serie: Thermische beveiliging
Type: EF19-2.7 10,20,30
EAN-code: 4013614404009
SKU Omnical: 2264985
Stock:
7 items.
Delivery time: 1-2 business days.
InStock
ZQG
$
296.50
per item
$
201.32
per item
CAD | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
1SAX121001R1103 ABB Components Electronic overload relay
ABB Components Electronic overload relay Electronisch overbelastingsrelais Range: 0,8 - 2,7A
Datasheet
Adjustable current range
(A)
0.8 - 2.7
Mounting method
Direct attachment
Type of electrical connection of main circuit
Screw connection
Number of auxiliary contacts as normally closed contact
1
Width
(mm)
44.4
Number of auxiliary contacts as normally open contact
1
Number of auxiliary contacts as change-over contact
0
Rated control supply voltage at AC 50 Hz
(V)
690 - 690
Rated control supply voltage at AC 60 Hz
(V)
690 - 690
Rated control supply voltage at DC
(V)
0 - 0
Release class
Adjustable
Voltage type for actuating
AC
Height
(mm)
85
Depth
(mm)
59.3
Reset function automatic
Yes
Reset function input
No
Reset function push-button
Yes
External power supply required
No
Voltage type (operating voltage)
AC
Operating voltage at AC 50 Hz
(V)
690 - 690
Operating voltage at AC 60 Hz
(V)
690 - 690
Operating voltage at DC
(V)
690 - 690
Rated switch current
(A)
2.7
Stock and logistics
Height
0.052 m
Width
0.091 m
Depth
0.068 m
Packaging
Package
Weight
0.158 kg
HS code
85364900
