ABB Components
1SAX221001R1101

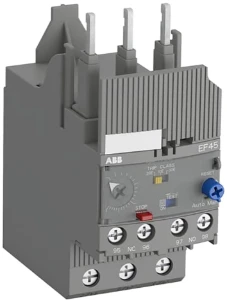

Electronic overload relay
Manufacturer part number: 1SAX221001R1101
Serie: Thermische beveiliging
Type: EF45-30 10,20,30
EAN-code: 4013614403965
SKU Omnical: 2264989
Stock:
2 items.
Delivery time: 1-2 business days.
InStock
ZQG
€
360,00
per item
€
244,44
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
1SAX221001R1101 ABB Components Electronic overload relay
ABB Components Electronic overload relay Elektronisch overbelasting relais Range: 9,0-30,0A Voor magneetsch. AF
Datasheet
Adjustable current range
(A)
9 - 30
Mounting method
Direct attachment
Type of electrical connection of main circuit
Screw connection
Number of auxiliary contacts as normally closed contact
1
Width
(mm)
45
Number of auxiliary contacts as normally open contact
1
Number of auxiliary contacts as change-over contact
0
Rated control supply voltage at AC 50 Hz
(V)
0 - 0
Rated control supply voltage at AC 60 Hz
(V)
0 - 0
Rated control supply voltage at DC
(V)
0 - 0
Release class
Adjustable
Voltage type for actuating
AC
Height
(mm)
104.7
Depth
(mm)
86
Reset function automatic
Yes
Reset function input
No
Reset function push-button
Yes
External power supply required
No
Voltage type (operating voltage)
AC
Operating voltage at AC 50 Hz
(V)
690 - 690
Operating voltage at AC 60 Hz
(V)
690 - 690
Operating voltage at DC
(V)
690 - 690
Rated switch current
(A)
30
Stock and logistics
Height
0.052 m
Width
0.111 m
Depth
0.093 m
Packaging
Package
Weight
0.362 kg
HS code
85364900
