ABB Components
1SAX351001R1101

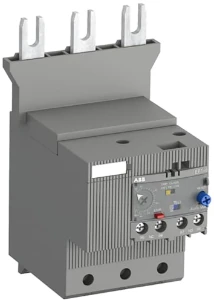

Electronic overload relay
Manufacturer part number: 1SAX351001R1101
Serie: Thermische beveiliging
Type: EF 146-150
EAN-code: 4013614442230
SKU Omnical: 2264992
Stock: 0.
Estimated lead time: 8 days *
PreOrder
ZQG
€
1.037,00
per item
€
704,12
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
1SAX351001R1101 ABB Components Electronic overload relay
ABB Components Electronic overload relay Electronisch overbelasting ralais Range 54 - 150A uitschakelklasse 10,
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Adjustable current range
(A)
54 - 150
Mounting method
Direct attachment
Type of electrical connection of main circuit
Screw connection
Number of auxiliary contacts as normally closed contact
1
Width
(mm)
89.05
Number of auxiliary contacts as normally open contact
1
Number of auxiliary contacts as change-over contact
0
Rated control supply voltage at AC 50 Hz
(V)
0 - 0
Rated control supply voltage at AC 60 Hz
(V)
0 - 0
Rated control supply voltage at DC
(V)
0 - 0
Release class
Adjustable
Voltage type for actuating
Self powered
Height
(mm)
150.4
Depth
(mm)
105.2
Reset function automatic
Yes
Reset function input
No
Reset function push-button
Yes
External power supply required
No
Voltage type (operating voltage)
AC
Operating voltage at AC 50 Hz
(V)
1000 - 1000
Operating voltage at AC 60 Hz
(V)
1000 - 1000
Operating voltage at DC
(V)
1000 - 1000
Rated switch current
(A)
150
Stock and logistics
Height
0.107 m
Width
0.16 m
Depth
0.097 m
Packaging
Package
Weight
0.879 kg
HS code
85364900
