ABB Components
1SAX611001R1101

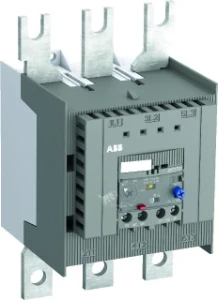

Electronic overload relay
Manufacturer part number: 1SAX611001R1101
Serie: Thermische beveiliging
Type: EF 370-380
EAN-code: 4013614442216
SKU Omnical: 1174584
Stock: 0.
Estimated lead time: 8 days *
PreOrder
ZQG
€
948,00
per item
€
643,69
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
1SAX611001R1101 ABB Components Electronic overload relay
ABB Components Electronic overload relay Electronisch overbelasting ralais Range 115 - 380A uitschakelklasse 10
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Adjustable current range
(A)
115 - 380
Mounting method
Direct attachment
Type of electrical connection of main circuit
Screw connection
Number of auxiliary contacts as normally closed contact
1
Width
(mm)
105
Number of auxiliary contacts as normally open contact
1
Number of auxiliary contacts as change-over contact
0
Rated control supply voltage at AC 50 Hz
(V)
0 - 0
Rated control supply voltage at AC 60 Hz
(V)
0 - 0
Rated control supply voltage at DC
(V)
0 - 0
Release class
Adjustable
Voltage type for actuating
Self powered
Height
(mm)
187.6
Depth
(mm)
122.8
Reset function automatic
Yes
Reset function input
No
Reset function push-button
Yes
External power supply required
No
Voltage type (operating voltage)
AC
Operating voltage at AC 50 Hz
(V)
1000 - 1000
Operating voltage at AC 60 Hz
(V)
1000 - 1000
Operating voltage at DC
(V)
1000 - 1000
Rated switch current
(A)
380
Stock and logistics
Height
0.199 m
Width
0.195 m
Depth
0.14 m
Packaging
Package
Weight
1.338 kg
HS code
85364900
