ABB Components
1SAX821001R1101

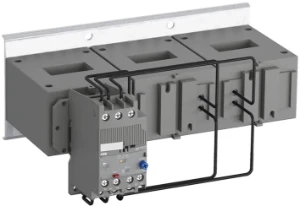

Electronic overload relay
Manufacturer part number: 1SAX821001R1101
Serie: Thermische beveiliging
Type: EF 750-800
EAN-code: 4013614487422
SKU Omnical: 2264993
Stock: 0.
Estimated lead time: 8 days *
PreOrder
ZQG
€
2.216,00
per item
€
1.504,66
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
1SAX821001R1101 ABB Components Electronic overload relay
ABB Components Electronic overload relay Electro. overbelastingsrelais Range 375 - 800A
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Adjustable current range
(A)
375 - 800
Mounting method
Direct attachment/single positioning
Type of electrical connection of main circuit
Screw connection
Number of auxiliary contacts as normally closed contact
1
Width
(mm)
244
Number of auxiliary contacts as normally open contact
1
Number of auxiliary contacts as change-over contact
0
Rated control supply voltage at AC 50 Hz
(V)
0 - 0
Rated control supply voltage at AC 60 Hz
(V)
0 - 0
Rated control supply voltage at DC
(V)
0 - 0
Release class
Adjustable
Voltage type for actuating
Self powered
Height
(mm)
111.6
Depth
(mm)
187.73
Reset function automatic
Yes
Reset function input
No
Reset function push-button
Yes
External power supply required
No
Voltage type (operating voltage)
AC
Operating voltage at AC 50 Hz
(V)
1000 - 1000
Operating voltage at AC 60 Hz
(V)
1000 - 1000
Operating voltage at DC
(V)
1000 - 1000
Rated switch current
(A)
800
Stock and logistics
Height
0.25 m
Width
0.144 m
Depth
0.27 m
Packaging
Package
Weight
2.765 kg
HS code
85364900
