ABB Components
1SBL296005R2100

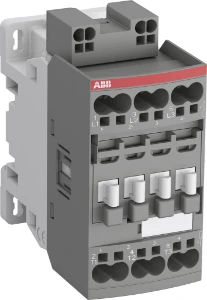

Power contactor, AC switching
Manufacturer part number: 1SBL296005R2100
Serie: Magneetschakelaar / AF
Type: AF 38Z-30-00K-21 24-60V50/60HZ 20-6
EAN-code: 3471523156814
SKU Omnical: 3056172
Stock: 0.
Estimated lead time: 22 days *
PreOrder
ZQG
€
339,00
per item
€
230,18
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
1SBL296005R2100 ABB Components Power contactor, AC switching
ABB Components Power contactor, AC switching Magneetschakelaar 18,5kW 400V 3-polig Spoelcode: 12 Breed spanningsber
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Rated control supply voltage at AC 50 Hz
(V)
24 - 60
Rated control supply voltage at AC 60 Hz
(V)
24 - 60
Rated control supply voltage at DC
(V)
20 - 60
Voltage type for actuating
AC/DC
Width
(mm)
45
Rated operation current Ie at AC-1, 400 V
(A)
50
Rated operation current Ie at AC-3, 400 V
(A)
38
Rated operation power at AC-3, 400 V
(kW)
18.5
Modular version
No
Number of auxiliary contacts as normally open contact
0
Number of auxiliary contacts as normally closed contact
0
Type of electrical connection of main circuit
Spring clamp connection
Number of normally closed contacts as main contact
0
Number of normally open contacts as main contact
3
Height
(mm)
92.3
Depth
(mm)
86
Rated operation power NEMA
(kW)
18.643
Operating voltage at AC 50 Hz
(V)
690 - 690
Operating voltage at AC 60 Hz
(V)
690 - 690
Stock and logistics
Height
0.092 m
Width
0.045 m
Depth
0.086 m
Packaging
Package
Weight
0.375 kg
HS code
85364900
