ABB Components
1SCA022278R1930

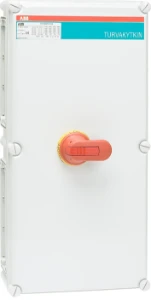

Switch disconnector
Manufacturer part number: 1SCA022278R1930
Serie: Enclosed Switches
Type: OT250KFCC3A
EAN-code: 6417019064406
SKU Omnical: 2265339
Stock: 0.
Estimated lead time: 40 days *
PreOrder
ZQV
€
2.035,00
per item
€
1.424,50
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
1SCA022278R1930 ABB Components Switch disconnector
ABB Components Switch disconnector Lastscheider, 3P + 2M/ 1V 250A, flens II kunststof kast, IP65, rode kn
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Number of poles
3
Rated permanent current Iu
(A)
250
Version as main switch
Yes
Version as maintenance-/service switch
Yes
Version as safety switch
Yes
Version as emergency stop installation
No
Width
(mm)
280
Device construction
Complete device in housing
Max. rated operation voltage Ue AC
(V)
690
Rated operation power at AC-23, 400 V
(kW)
132
Number of auxiliary contacts as normally closed contact
1
Number of auxiliary contacts as normally open contact
2
Number of auxiliary contacts as change-over contact
0
Motor drive optional
No
Motor drive integrated
No
Voltage release optional
No
Conditioned rated short-circuit current Iq
(kA)
40.5
Suitable for floor mounting
Yes
Suitable for front mounting 4-hole
No
Suitable for front mounting centre
No
Suitable for distribution board installation
Yes
Suitable for intermediate mounting
No
Type of control element
Long turning handle
Interlockable
Yes
Type of electrical connection of main circuit
Bolt connection
Degree of protection (IP), front side
IP65
Height
(mm)
560
Depth
(mm)
130
Version as reversing switch
No
Rated operating voltage
(V)
1000 - 1000
Rated permanent current at AC-21, 400 V
(A)
250
Rated operation power at AC-3, 400 V
(kW)
132
Rated short-time withstand current lcw
(kA)
8
Switching power at 400 V
(kW)
132
Colour control element
Red
Number of switches
1
Rated permanent current at AC-23, 400 V
(A)
250
Degree of protection (NEMA)
Other
Stock and logistics
Height
0.325 m
Width
0.415 m
Depth
0.71 m
Packaging
Package
Weight
7.463 kg
HS code
85363090
