ABB Components
1SCA022555R7740
Switch disconnector
Manufacturer part number: 1SCA022555R7740
Serie: Safety Switch
Type: OTL75A6B
EAN-code: 6417019177397
SKU Omnical: 2265487
Stock: 0.
Estimated lead time: 22 days *
PreOrder
ZQV
€
798,00
per item
€
558,60
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

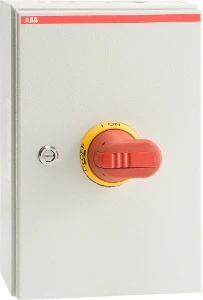

1SCA022555R7740 ABB Components Switch disconnector
ABB Components Switch disconnector Lastscheider, 6P 37kW, B-Flange rode knop
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Version as main switch
No
Version as maintenance-/service switch
Yes
Version as safety switch
Yes
Version as emergency stop installation
Yes
Max. rated operation voltage Ue AC
(V)
690
Rated permanent current Iu
(A)
80
Rated operation power at AC-23, 400 V
(kW)
37
Number of poles
6
Number of auxiliary contacts as normally closed contact
0
Number of auxiliary contacts as normally open contact
1
Number of auxiliary contacts as change-over contact
0
Motor drive optional
No
Motor drive integrated
No
Voltage release optional
No
Device construction
Complete device in housing
Suitable for floor mounting
Yes
Suitable for front mounting 4-hole
Yes
Suitable for front mounting centre
No
Suitable for distribution board installation
No
Suitable for intermediate mounting
No
Type of control element
Short thumb-grip
Interlockable
Yes
Type of electrical connection of main circuit
Screw connection
Degree of protection (IP), front side
IP65
Version as reversing switch
No
Rated operating voltage
(V)
750 - 750
Rated permanent current at AC-21, 400 V
(A)
100
Rated operation power at AC-3, 400 V
(kW)
37
Switching power at 400 V
(kW)
37
Colour control element
Red
Number of switches
1
Rated permanent current at AC-23, 400 V
(A)
80
Stock and logistics
Height
0.2 m
Width
0.3 m
Depth
0.6 m
Packaging
Package
Weight
4.1 kg
HS code
85371098
