ABB Components
1SCA022846R1590
Switch disconnector
Manufacturer part number: 1SCA022846R1590
Serie: OT
Type: OTM 200E4CM230C
EAN-code: 6417019296838
SKU Omnical: 2265708
Stock: 0.
Estimated lead time: 22 days *
PreOrder
ZQV
€
2.305,00
per item
€
1.613,50
per item
EUR | Excluding VAT
Quantity
items
Add to cart
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

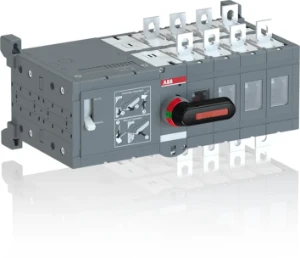

1SCA022846R1590 ABB Components Switch disconnector
ABB Components Switch disconnector Omkeerschakelaar, 200A 4p motor bediend 220...240 V
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Version as main switch
Yes
Version as maintenance-/service switch
Yes
Version as safety switch
No
Version as emergency stop installation
No
Width
(mm)
307
Max. rated operation voltage Ue AC
(V)
1000
Rated permanent current Iu
(A)
200
Rated operation power at AC-23, 400 V
(kW)
110
Number of poles
4
Number of auxiliary contacts as normally closed contact
0
Number of auxiliary contacts as normally open contact
0
Number of auxiliary contacts as change-over contact
0
Motor drive optional
No
Motor drive integrated
Yes
Voltage release optional
No
Device construction
Built-in device plug-in technique
Suitable for floor mounting
No
Suitable for front mounting 4-hole
Yes
Suitable for front mounting centre
No
Suitable for distribution board installation
Yes
Suitable for intermediate mounting
No
Type of control element
Long turning handle
Interlockable
Yes
Degree of protection (IP), front side
IP20
Height
(mm)
150
Depth
(mm)
197
Version as reversing switch
No
Rated operating voltage
(V)
1000 - 1000
Rated permanent current at AC-21, 400 V
(A)
200
Rated short-time withstand current lcw
(kA)
8
Switching power at 400 V
(kW)
110
Colour control element
Black
Number of switches
1
Rated permanent current at AC-23, 400 V
(A)
200
Degree of protection (NEMA)
1
Stock and logistics
Height
0.205 m
Width
0.185 m
Depth
0.367 m
Packaging
Package
Weight
8 kg
HS code
85365080
