ABB Components
1SCA100860R1001

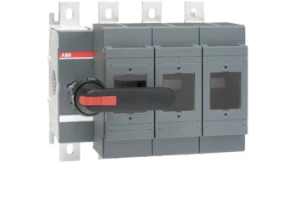

Fuse switch disconnector
Manufacturer part number: 1SCA100860R1001
Serie:
Type:
EAN-code: 6417019358024
SKU Omnical: 4399680
Stock: 0.
Estimated lead time: 33 days *
PreOrder
ZQV
$
3,082.72
per item
$
2,157.91
per item
USD | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
1SCA100860R1001 ABB Components Fuse switch disconnector
ABB Components Fuse switch disconnector
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Version as main switch
Yes
Version as safety switch
Yes
Rated permanent current Iu
(A)
570
Max. rated operation voltage Ue AC
(V)
1000
Suitable for fuses
Shape C1-C3
Conditioned rated short-circuit current Iq
(kA)
80
Number of poles
3
Type of electrical connection of main circuit
Bolt connection
Suitable for busbar mounting
Yes
Type of control element
Long turning handle
Version as emergency stop installation
No
Rated operation power at AC-23, 400 V
(kW)
630
Rated short-time withstand current lcw
(kA)
18
Position control element
Left
Motor drive optional
No
Motor drive integrated
No
Cable entry
Other
Equipped with connectors
Yes
Stock and logistics
Height
0.26 m
Width
0.328 m
Depth
0.365 m
Packaging
Package
Weight
13.5 kg
HS code
85365080
