ABB Components

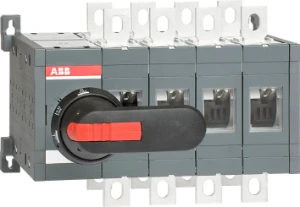

1SCA106405R1001
Switch disconnector
Manufacturer part number: 1SCA106405R1001
Serie: OT
Type: OT 400E04CLP
EAN-code: 6417019402024
SKU Omnical: 2265883
Stock: 0.
Estimated lead time: 33 days *
PreOrder
ZQV
$
3,506.95
per item
$
2,454.86
per item
USD | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
1SCA106405R1001 ABB Components Switch disconnector
ABB Components Switch disconnector Omkeerschakelaar, 400A 4P 1 1+2 2 gesloten transitie
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Number of poles
4
Rated permanent current Iu
(A)
400
Version as main switch
No
Version as maintenance-/service switch
No
Version as safety switch
No
Version as emergency stop installation
No
Width
(mm)
265
Device construction
Built-in device fixed built-in technique
Max. rated operation voltage Ue AC
(V)
690
Rated operation power at AC-23, 400 V
(kW)
220
Number of auxiliary contacts as normally closed contact
0
Number of auxiliary contacts as normally open contact
0
Number of auxiliary contacts as change-over contact
0
Motor drive optional
No
Motor drive integrated
No
Voltage release optional
No
Suitable for floor mounting
Yes
Suitable for front mounting 4-hole
No
Suitable for front mounting centre
No
Suitable for distribution board installation
Yes
Suitable for intermediate mounting
Yes
Type of control element
Toggle
Interlockable
No
Type of electrical connection of main circuit
Screw connection
Degree of protection (IP), front side
IP40
Height
(mm)
185
Depth
(mm)
203
Version as reversing switch
No
Rated operating voltage
(V)
0 - 690
Rated permanent current at AC-21, 400 V
(A)
400
Rated operation power at AC-3, 400 V
(kW)
220
Rated short-time withstand current lcw
(kA)
15
Switching power at 400 V
(kW)
220
Colour control element
Black
Number of switches
1
Rated permanent current at AC-23, 400 V
(A)
400
Degree of protection (NEMA)
1
Stock and logistics
Height
0.218 m
Width
0.24 m
Depth
0.325 m
Packaging
Package
Weight
7.5 kg
HS code
85365080
