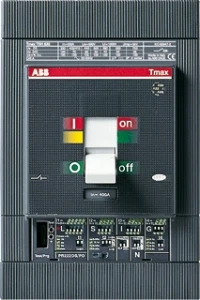

ABB Components 1SDA054602R1
ABB Components

1SDA054602R1

Switch disconnector
Manufacturer part number: 1SDA054602R1
Serie: Tmax
Type: T5D 630 Switch FF 4

EAN-code: 8015644557003
SKU Omnical: 2095379

Stock: 0.

Estimated lead time: 8 days *
PreOrder

ZQL
3.268,00 per item
2.124,20 per item
EUR | Excluding VAT

Quantity
items
Add to cart
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
paypal
visa
mastercard
wire-transfer
1SDA054602R1 ABB Components Switch disconnector
ABB Components Switch disconnector Tmax T5D 630 4P vast met vooraansluiting lastschakelaar zonderbeveilig
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.

Datasheet

Version as main switch
Yes
Version as maintenance-/service switch
No
Version as safety switch
No
Version as emergency stop installation
No
Width (mm)
186
Max. rated operation voltage Ue AC (V)
690
Rated permanent current Iu (A)
630
Number of poles
4
Number of auxiliary contacts as normally closed contact
0
Number of auxiliary contacts as normally open contact
0
Number of auxiliary contacts as change-over contact
0
Motor drive optional
Yes
Motor drive integrated
No
Voltage release optional
Yes
Device construction
Built-in device fixed built-in technique
Suitable for floor mounting
Yes
Suitable for front mounting 4-hole
No
Suitable for front mounting centre
No
Suitable for distribution board installation
Yes
Suitable for intermediate mounting
No
Type of control element
Rocker lever
Interlockable
Yes
Type of electrical connection of main circuit
Screw connection
Degree of protection (IP), front side
IP20
Height (mm)
205
Depth (mm)
103.5
Version as reversing switch
No
Rated operating voltage (V)
0 - 690
Rated permanent current at AC-21, 400 V (A)
630
Rated operation power at AC-3, 400 V (kW)
200
Rated short-time withstand current lcw (kA)
6
Colour control element
White
Degree of protection (NEMA)
1

Stock and logistics

Height
0.23 m
Width
0.25 m
Depth
0.29 m

Packaging
Package
Weight
4.08 kg
HS code
85362090
