ABB Components 1SDA062845R1
ABB Components

1SDA062845R1

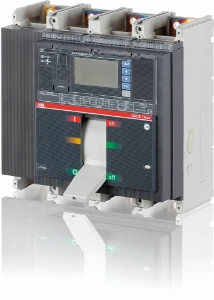

Power circuit-breaker for trafo/generator/installation protection
Manufacturer part number: 1SDA062845R1
Serie: Tmax
Type: T7V 1000/1000 PR332/P-LI FF 4

EAN-code: 8015644653941
SKU Omnical: 2271243

Estimated lead time: 27 days.
PreOrder

ZQO
€ 9.558,00 per item
7.990,49 per item
EUR | Excluding VAT

Quantity
pce
Add to cart
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
paypal
visa
mastercard
wire-transfer
1SDA062845R1 ABB Components Power circuit-breaker for trafo/generator/installation protection
ABB Components Power circuit-breaker for trafo/generator/installation protection

Datasheet

Rated permanent current Iu (A)
1000
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz (kA)
150
Overload release current setting (A)
400 - 1000
Adjustment range undelayed short-circuit release (A)
1500 - 15000
Integrated earth fault protection
No
Type of electrical connection of main circuit
Bolt connection
Device construction
Built-in device fixed built-in technique
Suitable for DIN rail (top hat rail) mounting
No
Number of auxiliary contacts as normally closed contact
0
Number of auxiliary contacts as normally open contact
0
Number of auxiliary contacts as change-over contact
0
With switched-off indicator
Yes
With under voltage release
No
Number of poles
4
Type of control element
Rocker lever
Motor drive optional
Yes
Motor drive integrated
No
Degree of protection (IP)
IP20
DIN rail (top hat rail) mounting optional
No
Complete device with protection unit
Yes

Stock and logistics

Height
0.35 m
Width
0.36 m
Depth
0.37 m

Packaging
Package
Weight
15.22 kg
HS code
85362090
