ABB Components
1SDA071691R1
Power circuit-breaker for trafo/generator/installation protection
Manufacturer part number: 1SDA071691R1
Serie: Emax 2
Type: E2.2N 2500 Ekip Dip LI 4p FHR
EAN-code: 8015644755416
SKU Omnical: 2274394
Stock: 0.
Estimated lead time: 26 days *
PreOrder
ZQN
€
19.977,00
per item
€
12.985,05
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
1SDA071691R1 ABB Components Power circuit-breaker for trafo/generator/installation protection

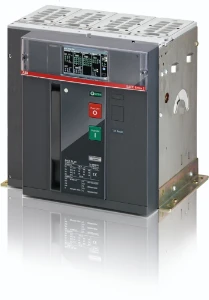

ABB Components Power circuit-breaker for trafo/generator/installation protection Emax2 E2.2N Dip LI In=2500A Vast met HR/VR aansluiting 4 polig
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Rated permanent current Iu
(A)
2500
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz
(kA)
66
Overload release current setting
(A)
1000 - 2500
Adjustment range undelayed short-circuit release
(A)
3750 - 37500
Integrated earth fault protection
No
Type of electrical connection of main circuit
Bolt connection
Device construction
Built-in device fixed built-in technique
Suitable for DIN rail (top hat rail) mounting
No
Number of auxiliary contacts as normally closed contact
0
Number of auxiliary contacts as normally open contact
0
Number of auxiliary contacts as change-over contact
4
With switched-off indicator
Yes
With under voltage release
No
Number of poles
4
Position of connection for main current circuit
Back side
Type of control element
Push button
Motor drive optional
Yes
Motor drive integrated
No
Degree of protection (IP)
IP30
Rated voltage
(V)
690 - 690
DIN rail (top hat rail) mounting optional
No
Complete device with protection unit
Yes
With integrated under voltage release
No
Power loss
(W)
267
Stock and logistics
Height
0.61 m
Width
0.515 m
Depth
0.615 m
Packaging
Package
Weight
53 kg
HS code
85362090
