ABB Components 1SDA071838R1
ABB Components

1SDA071838R1

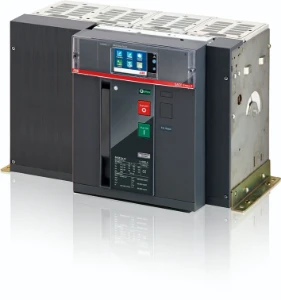

Power circuit-breaker for trafo/generator/installation protection
Manufacturer part number: 1SDA071838R1
Serie: Emax 2
Type: E4.2S 4000 Ekip Hi-Touch LSI 4p FHR

EAN-code: 8015644756888
SKU Omnical: 2274501

Stock: 0.

Estimated lead time: 22 days *
PreOrder

ZQN
40.729,00 per item
26.473,85 per item
EUR | Excluding VAT

Quantity
items
Add to cart
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
paypal
visa
mastercard
wire-transfer
1SDA071838R1 ABB Components Power circuit-breaker for trafo/generator/installation protection
ABB Components Power circuit-breaker for trafo/generator/installation protection Emax2 E4.2S Hi-Touch LSI In=4000A Vast met HR/VR aansluiting 4 polig
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.

Datasheet

Rated permanent current Iu (A)
4000
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz (kA)
85
Overload release current setting (A)
1600 - 4000
Adjustment range short-term delayed short-circuit release (A)
2400 - 40000
Adjustment range undelayed short-circuit release (A)
6000 - 60000
Integrated earth fault protection
No
Type of electrical connection of main circuit
Bolt connection
Device construction
Built-in device fixed built-in technique
Suitable for DIN rail (top hat rail) mounting
No
Number of auxiliary contacts as normally closed contact
0
Number of auxiliary contacts as normally open contact
0
Number of auxiliary contacts as change-over contact
4
With switched-off indicator
Yes
With under voltage release
No
Number of poles
4
Position of connection for main current circuit
Back side
Type of control element
Push button
Motor drive optional
Yes
Motor drive integrated
No
Degree of protection (IP)
IP30
Rated voltage (V)
690 - 690
DIN rail (top hat rail) mounting optional
No
Complete device with protection unit
Yes
With integrated under voltage release
No
Power loss (W)
465

Stock and logistics

Height
0.6 m
Width
0.515 m
Depth
0.785 m

Packaging
Package
Weight
95 kg
HS code
85362090
