ABB Components
1SDA071981R1

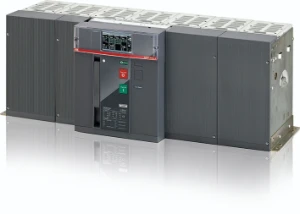

Power circuit-breaker for trafo/generator/installation protection
Manufacturer part number: 1SDA071981R1
Serie: Emax 2
Type: E6.2H/f 5000 Ekip Dip LI 4p FHR
EAN-code: 8015644758318
SKU Omnical: 2274604
Stock: 0.
Estimated lead time: 22 days *
PreOrder
ZQN
€
71.315,00
per item
€
46.354,75
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
1SDA071981R1 ABB Components Power circuit-breaker for trafo/generator/installation protection
ABB Components Power circuit-breaker for trafo/generator/installation protection Emax2 E6.2H/f Dip LI In=5000A Vast met HR/VR aansluiting 4 polig
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Rated permanent current Iu
(A)
5000
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz
(kA)
100
Overload release current setting
(A)
2000 - 5000
Adjustment range undelayed short-circuit release
(A)
7500 - 75000
Integrated earth fault protection
No
Type of electrical connection of main circuit
Bolt connection
Device construction
Built-in device fixed built-in technique
Suitable for DIN rail (top hat rail) mounting
No
Number of auxiliary contacts as normally closed contact
0
Number of auxiliary contacts as normally open contact
0
Number of auxiliary contacts as change-over contact
4
With switched-off indicator
Yes
With under voltage release
No
Number of poles
4
Position of connection for main current circuit
Back side
Type of control element
Push button
Motor drive optional
Yes
Motor drive integrated
No
Degree of protection (IP)
IP30
Rated voltage
(V)
690 - 690
DIN rail (top hat rail) mounting optional
No
Complete device with protection unit
Yes
With integrated under voltage release
No
Power loss
(W)
483
Stock and logistics
Height
0.6 m
Width
0.515 m
Depth
0.27 m
Packaging
Package
Weight
161 kg
HS code
85362090
