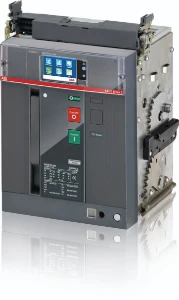

ABB Components 1SDA072368R1
ABB Components

1SDA072368R1

Power circuit-breaker for trafo/generator/installation protection
Manufacturer part number: 1SDA072368R1
Serie: Emax 2
Type: E2.2H 1600 Ekip Hi-Touch LSI 3p WMP

EAN-code: 8015644762186
SKU Omnical: 2274931

Stock: 0.

Estimated lead time: 22 days *
PreOrder

ZQN
19.431,00 per item
12.630,15 per item
EUR | Excluding VAT

Quantity
items
Add to cart
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
paypal
visa
mastercard
wire-transfer
1SDA072368R1 ABB Components Power circuit-breaker for trafo/generator/installation protection
ABB Components Power circuit-breaker for trafo/generator/installation protection Emax2 E2.2H Hi-Touch LSI In=1600A Uitrijdbare uitvoering 3 polig
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.

Datasheet

Rated permanent current Iu (A)
1600
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz (kA)
100
Overload release current setting (A)
640 - 1600
Adjustment range short-term delayed short-circuit release (A)
960 - 16000
Adjustment range undelayed short-circuit release (A)
2400 - 24000
Integrated earth fault protection
No
Type of electrical connection of main circuit
Connection at separate chassis part
Device construction
Built-in device slide-in technique (withdrawable)
Suitable for DIN rail (top hat rail) mounting
No
Number of auxiliary contacts as normally closed contact
0
Number of auxiliary contacts as normally open contact
0
Number of auxiliary contacts as change-over contact
4
With switched-off indicator
Yes
With under voltage release
No
Number of poles
3
Position of connection for main current circuit
Connection at separate chassis part
Type of control element
Push button
Motor drive optional
Yes
Motor drive integrated
No
Degree of protection (IP)
IP30
Rated voltage (V)
690 - 690
DIN rail (top hat rail) mounting optional
No
Complete device with protection unit
Yes
With integrated under voltage release
No

Stock and logistics

Height
0.6 m
Width
0.515 m
Depth
0.515 m

Packaging
Package
Weight
59 kg
HS code
85362090
