1SDA072502R1
Power circuit-breaker for trafo/generator/installation protection
Manufacturer part number: 1SDA072502R1
Serie: Emax 2

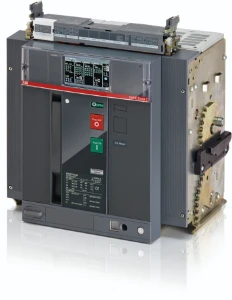

Type: E4.2S 3200 Ekip Dip LSI 3p WMP
EAN-code: 8015644763527
SKU Omnical: 2275035
Stock: 0.
Estimated lead time: 8 days *
PreOrder
ZQN
$
27,301.86
per item
$
17,746.21
per item
USD | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
1SDA072502R1 ABB Components Power circuit-breaker for trafo/generator/installation protection
ABB Components Power circuit-breaker for trafo/generator/installation protection Emax2 E4.2S Dip LSI In=3200A Uitrijdbare uitvoering 3 polig
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Rated permanent current Iu
(A)
3200
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz
(kA)
85
Overload release current setting
(A)
1280 - 3200
Adjustment range short-term delayed short-circuit release
(A)
1920 - 32000
Adjustment range undelayed short-circuit release
(A)
4800 - 48000
Integrated earth fault protection
No
Type of electrical connection of main circuit
Connection at separate chassis part
Device construction
Built-in device slide-in technique (withdrawable)
Suitable for DIN rail (top hat rail) mounting
No
Number of auxiliary contacts as normally closed contact
0
Number of auxiliary contacts as normally open contact
0
Number of auxiliary contacts as change-over contact
4
With switched-off indicator
Yes
With under voltage release
No
Number of poles
3
Position of connection for main current circuit
Connection at separate chassis part
Type of control element
Push button
Motor drive optional
Yes
Motor drive integrated
No
Degree of protection (IP)
IP30
Rated voltage
(V)
690 - 690
DIN rail (top hat rail) mounting optional
No
Complete device with protection unit
Yes
With integrated under voltage release
No
Power loss
(W)
743
Stock and logistics
Height
0.61 m
Width
0.515 m
Depth
0.615 m
Packaging
Package
Weight
60 kg
HS code
85362090
