ABB Components 1SDA072707R1
ABB Components

1SDA072707R1

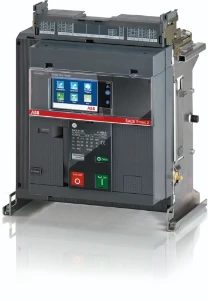

Power circuit-breaker for trafo/generator/installation protection
Manufacturer part number: 1SDA072707R1
Serie: Emax 2
Type: E1.2N 630 Ekip G Touch LSIG 4p WMP

EAN-code: 8015644765576
SKU Omnical: 2275200

Estimated lead time: 27 days.
PreOrder

ZQN
€ 13.189,00 per item
8.876,20 per item
EUR | Excluding VAT

Quantity
pce
Add to cart
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
paypal
visa
mastercard
wire-transfer
1SDA072707R1 ABB Components Power circuit-breaker for trafo/generator/installation protection
ABB Components Power circuit-breaker for trafo/generator/installation protection

Datasheet

Rated permanent current Iu (A)
630
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz (kA)
66
Overload release current setting (A)
252 - 630
Adjustment range short-term delayed short-circuit release (A)
378 - 6300
Adjustment range undelayed short-circuit release (A)
945 - 9450
Integrated earth fault protection
Yes
Suitable for DIN rail (top hat rail) mounting
No
Number of auxiliary contacts as normally closed contact
0
Number of auxiliary contacts as normally open contact
0
Number of auxiliary contacts as change-over contact
4
With switched-off indicator
Yes
With under voltage release
No
Number of poles
4
Type of control element
Push button
Motor drive optional
Yes
Motor drive integrated
No
Degree of protection (IP)
IP20
DIN rail (top hat rail) mounting optional
No
Complete device with protection unit
Yes

Stock and logistics

Height
0.35 m
Width
0.335 m
Depth
0.38 m

Packaging
Package
Weight
15.4 kg
HS code
85362090
