ABB Components 1SDA073177R1
ABB Components

1SDA073177R1

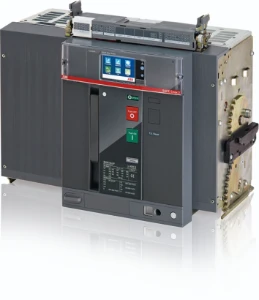

Power circuit-breaker for trafo/generator/installation protection
Manufacturer part number: 1SDA073177R1
Serie: Emax 2
Type: E4.2N 4000 Ekip G Touch LSIG 4p WMP

EAN-code: 8015644770273
SKU Omnical: 2275590

Estimated lead time: 27 days.
PreOrder

ZQN
€ 38.436,00 per item
25.867,43 per item
EUR | Excluding VAT

Quantity
pce
Add to cart
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
paypal
visa
mastercard
wire-transfer
1SDA073177R1 ABB Components Power circuit-breaker for trafo/generator/installation protection
ABB Components Power circuit-breaker for trafo/generator/installation protection

Datasheet

Rated permanent current Iu (A)
4000
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz (kA)
66
Overload release current setting (A)
1600 - 4000
Adjustment range short-term delayed short-circuit release (A)
2400 - 24000
Adjustment range undelayed short-circuit release (A)
6000 - 60000
Integrated earth fault protection
Yes
Suitable for DIN rail (top hat rail) mounting
No
Number of auxiliary contacts as normally closed contact
0
Number of auxiliary contacts as normally open contact
0
Number of auxiliary contacts as change-over contact
4
With switched-off indicator
Yes
With under voltage release
No
Number of poles
4
Type of control element
Push button
Motor drive optional
Yes
Motor drive integrated
No
Degree of protection (IP)
IP20
DIN rail (top hat rail) mounting optional
No
Complete device with protection unit
Yes

Stock and logistics

Height
0.6 m
Width
0.515 m
Depth
0.615 m

Packaging
Package
Weight
76.9 kg
HS code
85362090
