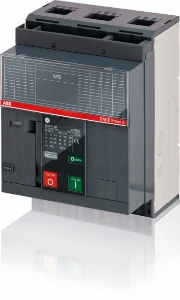

ABB Components 1SDA073401R1
ABB Components

1SDA073401R1

Switch disconnector
Manufacturer part number: 1SDA073401R1
Serie: Emax 2
Type: E1.2N/MS 1600 3p F F

EAN-code: 8015644772512
SKU Omnical: 2275754

Stock: 0.

Estimated lead time: 22 days *
PreOrder

ZQN
7.289,00 per item
4.737,85 per item
EUR | Excluding VAT

Quantity
items
Add to cart
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
paypal
visa
mastercard
wire-transfer
1SDA073401R1 ABB Components Switch disconnector
ABB Components Switch disconnector Emax2 E1.2N/MS 3p F F In=1600A lastschakelaar zonder beveiliging 3 pol
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.

Datasheet

Version as main switch
Yes
Version as maintenance-/service switch
No
Version as safety switch
No
Version as emergency stop installation
No
Width (mm)
210
Max. rated operation voltage Ue AC (V)
690
Rated permanent current Iu (A)
1600
Number of poles
3
Number of auxiliary contacts as normally closed contact
0
Number of auxiliary contacts as normally open contact
0
Number of auxiliary contacts as change-over contact
0
Motor drive optional
Yes
Motor drive integrated
No
Voltage release optional
Yes
Device construction
Built-in device fixed built-in technique
Suitable for floor mounting
No
Suitable for front mounting 4-hole
No
Suitable for front mounting centre
No
Suitable for distribution board installation
Yes
Suitable for intermediate mounting
No
Type of control element
Push button
Interlockable
Yes
Type of electrical connection of main circuit
Bolt connection
Degree of protection (IP), front side
IP20
Height (mm)
296
Depth (mm)
183
Version as reversing switch
No
Rated operating voltage (V)
690 - 690
Rated permanent current at AC-21, 400 V (A)
1600
Rated short-time withstand current lcw (kA)
50
Colour control element
Other
Number of switches
0
Rated permanent current at AC-23, 400 V (A)
1600
Degree of protection (NEMA)
Other

Stock and logistics

Height
0.35 m
Width
0.28 m
Depth
0.36 m

Packaging
Package
Weight
12.5 kg
HS code
85362090
