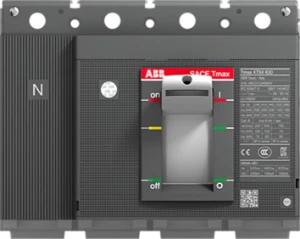

1SDA100561R1
Power circuit-breaker for trafo/generator/installation protection
Manufacturer part number: 1SDA100561R1
Serie: Tmax XT
Type: XT5H 630 Breaking unit 4p F F
EAN-code: 8056221006378
SKU Omnical: 4018199
Stock: 0.
Estimated lead time: 26 days *
PreOrder
ZQM
$
3,812.52
per item
$
2,478.14
per item
USD | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
1SDA100561R1 ABB Components Power circuit-breaker for trafo/generator/installation protection
ABB Components Power circuit-breaker for trafo/generator/installation protection XT5H 630 Breaking unit 4 polig vast met vooraansluiting alleen breakin
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Rated permanent current Iu
(A)
630
Integrated earth fault protection
No
Type of electrical connection of main circuit
Bolt connection
Device construction
Built-in device fixed built-in technique
Suitable for DIN rail (top hat rail) mounting
No
Number of auxiliary contacts as normally closed contact
0
Number of auxiliary contacts as normally open contact
0
Number of auxiliary contacts as change-over contact
0
With switched-off indicator
No
Number of poles
4
Position of connection for main current circuit
Front side
Type of control element
Toggle
Motor drive optional
Yes
Motor drive integrated
No
Degree of protection (IP)
IP20
Rated voltage
(V)
220 - 690
DIN rail (top hat rail) mounting optional
Yes
Complete device with protection unit
No
With integrated under voltage release
No
Stock and logistics
Height
0.24 m
Width
0.248 m
Depth
0.285 m
Packaging
Package
Weight
4.15 kg
HS code
85389099
