ABB Components
1SDX166026R1
Switch disconnector
Manufacturer part number: 1SDX166026R1
Serie:
Type: XT6D 1000 3p F F :with accessories
EAN-code: 8057558686608
SKU Omnical: 4234498
Stock: 0.
Estimated lead time: 26 days *
PreOrder
ZQM
€
2.882,00
per item
€
1.873,30
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

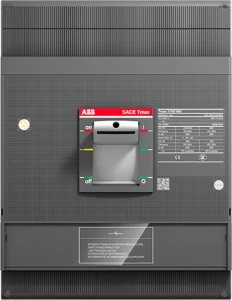

1SDX166026R1 ABB Components Switch disconnector
ABB Components Switch disconnector Inclusief Vermogensautomaat en accessoires 1SDA100785R1 XT6D 1000 3p F
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Number of poles
3
Rated permanent current Iu
(A)
1000
Version as main switch
Yes
Version as maintenance-/service switch
No
Version as safety switch
No
Version as emergency stop installation
No
Width
(mm)
210
Device construction
Built-in device fixed built-in technique
Max. rated operation voltage Ue AC
(V)
690
Number of auxiliary contacts as normally closed contact
0
Number of auxiliary contacts as normally open contact
0
Number of auxiliary contacts as change-over contact
0
Motor drive optional
Yes
Motor drive integrated
No
Voltage release optional
Yes
Suitable for front mounting 4-hole
No
Suitable for front mounting centre
No
Suitable for distribution board installation
Yes
Suitable for intermediate mounting
No
Type of control element
Toggle
Interlockable
Yes
Type of electrical connection of main circuit
Bolt connection
Degree of protection (IP), front side
IP20
Height
(mm)
268
Depth
(mm)
103.5
Version as reversing switch
No
Rated operating voltage
(V)
0 - 690
Rated permanent current at AC-21, 400 V
(A)
1000
Rated short-time withstand current lcw
(kA)
15
Colour control element
White
Rated permanent current at AC-23, 400 V
(A)
1000
Degree of protection (NEMA)
1
Stock and logistics
Height
0.285 m
Width
0.305 m
Depth
0.37 m
Packaging
Package
Weight
11 kg
HS code
85362090
