ABB Components
1SVR508100R0000
Timer relay
Manufacturer part number: 1SVR508100R0000
Serie: Tijdrelais / CT-C
Type: CT-ERC.12
EAN-code: 4013614534317
SKU Omnical: 3053515
Stock:
30 items.
Delivery time: 1-2 business days.
InStock
SSL Connection
WorldWide Shipping

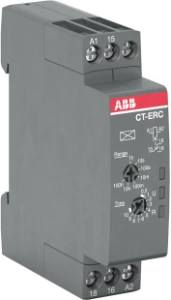

1SVR508100R0000 ABB Components Timer relay
ABB Components Timer relay Tijdrelais, opkomend vertraagd 1c/o, 24-48VDC/24-240VAC
Datasheet
Type of electric connection
Screw connection
Function delay-on energization
Yes
Function delay on de-energization
No
Function floating contact on energization
No
Function floating contact on de-energization
No
Width
(mm)
17.5
Function star-delta
No
Function pulse shaping
No
Function flashing, starting with pause, fixed time
No
Function flashing, starting with pulse, fixed time
No
Clock function, starting with pause, variable
No
Clock function, starting with pulse, variable
No
With plug-in socket
No
Remote operation possible
No
Suitable as remote control
No
Pluggable on auxiliary contact block
No
Rated control supply voltage AC 50 Hz
(V)
24 - 240
Rated control supply voltage AC 60 Hz
(V)
24 - 240
Rated control supply voltage DC
(V)
24 - 48
Voltage type for actuating
AC/DC
Time range
(s)
0.1 - 360000
Number of outputs, undelayed, normally closed contact
0
Number of outputs, undelayed, normally open contact
0
Number of outputs, undelayed, change-over contact
1
Number of outputs, delayed, normally closed contact
0
Number of outputs, delayed, normally open contact
0
Number of outputs, delayed, change-over contact
1
Outputs, reversible delayed/undelayed
No
With semiconductor output
No
Height
(mm)
80
Depth
(mm)
63
Nominal current
(A)
5
Suitable for DIN rail (top hat rail) mounting
Yes
Suitable for front mounting
No
Complete with socket
No
Suitable for front mounting
No
Operating voltage AC 50 Hz
(V)
250 - 250
Operating voltage AC 60 Hz
(V)
250 - 250
Voltage type (operating voltage)
AC/DC
Degree of protection (IP)
IP20
Stock and logistics
Height
0.065 m
Width
0.089 m
Depth
0.02 m
Packaging
Package
Weight
0.052 kg
HS code
85364900
