ABB Components
1SVR560730R3401
Voltage monitoring relay
Manufacturer part number: 1SVR560730R3401
Serie: Monitoring relais / CM-U
Type: CM-UFD.M31
EAN-code: 4013614492914
SKU Omnical: 3056302
Stock: 0.
Estimated lead time: 8 days *
PreOrder
ZRN
$
1,784.05
per item
$
1,300.57
per item
USD | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

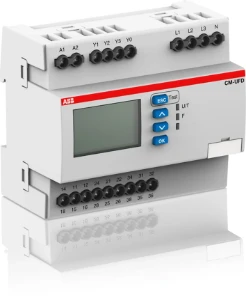

1SVR560730R3401 ABB Components Voltage monitoring relay
ABB Components Voltage monitoring relay CM-UFD.M31
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Type of electric connection
Screw connection
With detachable clamps
No
Single-phase under voltage possible
Yes
Three-phase under voltage possible
Yes
Single-phase over voltage possible
Yes
Width
(mm)
108
Three-phase over voltage possible
Yes
Single-phase hysteresis possible
Yes
Three-phase hysteresis possible
Yes
Contains function DC-under voltage
No
Contains function DC-over voltage
No
Contains function DC-voltage hysteresis
No
Voltage measuring range 1
(V)
0 - 540
Voltage measuring range 2
(V)
0 - 540
Type of voltage measuring range
AC
Rated control supply voltage at AC 50 Hz
(V)
24 - 240
Rated control supply voltage at AC 60 Hz
(V)
24 - 240
Rated control supply voltage at DC
(V)
24 - 240
Voltage type for actuating
AC/DC
Response value voltage
(V)
0 - 540
Min. adjustable delay-on energization time
(s)
0
Max. permitted delay-on energization time
(s)
0
Min. adjustable off-delay time
(s)
0
Max. permitted off-delay time
(s)
0
Number of contacts as normally closed contact
0
Number of contacts as normally open contact
0
Number of contacts as change-over contact
3
Height
(mm)
90
Depth
(mm)
67
External power supply required
Yes
Voltage type of supply voltage
AC/DC
Supply voltage AC 50 Hz
(V)
24 - 240
Supply voltage AC 60 Hz
(V)
24 - 240
Supply voltage DC
(V)
24 - 240
Operating voltage at AC 50 Hz
(V)
230 - 230
Operating voltage at AC 60 Hz
(V)
230 - 230
Rated switch current
(A)
4
Stock and logistics
Height
0.099 m
Width
0.121 m
Depth
0.071 m
Packaging
Package
Weight
0.304 kg
HS code
85364900
