ABB Components
1SVR730831R0300
Voltage monitoring relay
Manufacturer part number: 1SVR730831R0300
Serie: Monitorings relais / CM-E
Type: CM-ESS.1S
EAN-code: 4016779852180
SKU Omnical: 2281327
Stock: 0.
Estimated lead time: 39 days *
PreOrder
ZRN
$
270.84
per item
$
197.44
per item
CAD | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

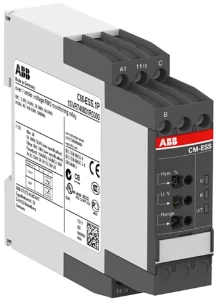

1SVR730831R0300 ABB Components Voltage monitoring relay
ABB Components Voltage monitoring relay CM-ESS.1S Supply Voltage 110-130 V AC
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Type of electric connection
Spring clamp connection
With detachable clamps
No
Single-phase under voltage possible
Yes
Three-phase under voltage possible
No
Single-phase over voltage possible
Yes
Width
(mm)
22.5
Three-phase over voltage possible
No
Single-phase hysteresis possible
Yes
Three-phase hysteresis possible
No
Contains function DC-under voltage
Yes
Contains function DC-over voltage
Yes
Contains function DC-voltage hysteresis
Yes
Voltage measuring range 1
(V)
3 - 600
Voltage measuring range 2
(V)
3 - 600
Type of voltage measuring range
AC/DC
Rated control supply voltage at AC 50 Hz
(V)
110 - 130
Rated control supply voltage at AC 60 Hz
(V)
110 - 130
Voltage type for actuating
AC
Response value voltage
(V)
3 - 600
Min. adjustable delay-on energization time
(s)
0
Max. permitted delay-on energization time
(s)
0
Min. adjustable off-delay time
(s)
0
Max. permitted off-delay time
(s)
0
Number of contacts as normally closed contact
0
Number of contacts as normally open contact
0
Number of contacts as change-over contact
1
Height
(mm)
78
Depth
(mm)
102
External power supply required
Yes
Voltage type of supply voltage
AC
Supply voltage AC 50 Hz
(V)
110 - 130
Supply voltage AC 60 Hz
(V)
110 - 130
Operating voltage at AC 50 Hz
(V)
230 - 230
Operating voltage at AC 60 Hz
(V)
230 - 230
Rated switch current
(A)
4
Stock and logistics
Height
0.109 m
Width
0.097 m
Depth
0.03 m
Packaging
Package
Weight
0.164 kg
HS code
85364900
