1SVR730841R0400
Current monitoring relay
Manufacturer part number: 1SVR730841R0400
Serie: Monitoring relais / CM-M / CM-P / C
Type: CM-SRS.21S
EAN-code: 4016779852302
SKU Omnical: 2281337
Stock: 0.
Estimated lead time: 39 days *
PreOrder
ZRN
$
217.55
per item
$
158.59
per item
USD | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

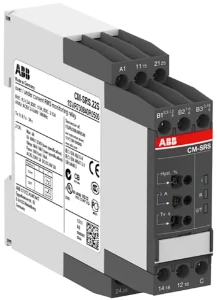

1SVR730841R0400 ABB Components Current monitoring relay
ABB Components Current monitoring relay CM-SRS.21S Supply Voltage 110-130 V AC
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Type of electric connection
Screw connection
With detachable clamps
No
Single-phase under current possible
Yes
Three-phase under current possible
No
Single-phase overcurrent possible
Yes
Width
(mm)
22.5
Three-phase overcurrent possible
No
Single-phase hysteresis possible
Yes
Three-phase hysteresis possible
No
Contains function DC-voltage under current
Yes
Contains function DC-voltage overcurrent
Yes
Function DC-current hysteresis
Yes
Rated control supply voltage at AC 50 Hz
(V)
110 - 240
Rated control supply voltage at AC 60 Hz
(V)
110 - 240
Voltage type for actuating
AC
Current measuring range
(A)
0.003 - 1
Min. adjustable delay-on energization time
(s)
0
Max. permitted delay-on energization time
(s)
30
Min. adjustable off-delay time
(s)
0
Max. permitted off-delay time
(s)
30
Number of contacts as normally closed contact
0
Number of contacts as normally open contact
0
Number of contacts as change-over contact
2
Height
(mm)
78
Depth
(mm)
103
External current transformer
No
External power supply required
Yes
Voltage type of supply voltage
AC
Supply voltage AC 50 Hz
(V)
110 - 130
Supply voltage AC 60 Hz
(V)
110 - 130
Type of current
AC
Response value amperage 1
(A)
0.1 - 100
Response value amperage 2
(A)
0.1 - 100
Voltage type (operating voltage)
AC
Operating voltage at AC 50 Hz
(V)
230 - 230
Operating voltage at AC 60 Hz
(V)
230 - 230
Rated switch current
(A)
4
Stock and logistics
Height
0.109 m
Width
0.097 m
Depth
0.03 m
Packaging
Package
Weight
0.179 kg
HS code
85364900
