ABB Components
1SVR740794R1300

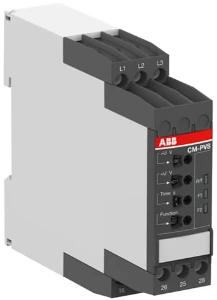

Voltage monitoring relay
Manufacturer part number: 1SVR740794R1300
Serie: Monitoring relais / CM-M / CM-P / C
Type: CM-PVS.31P
EAN-code: 4016779852012
SKU Omnical: 2281390
Stock: 0.
Estimated lead time: 39 days *
PreOrder
ZRN
€
266,00
per item
€
193,91
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
1SVR740794R1300 ABB Components Voltage monitoring relay
ABB Components Voltage monitoring relay Meet- en bewakingsrelais Driefase bewakingsrelais met veerdrukklem
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Type of electric connection
Spring clamp connection
With detachable clamps
No
Single-phase under voltage possible
No
Three-phase under voltage possible
Yes
Single-phase over voltage possible
No
Width
(mm)
22.5
Three-phase over voltage possible
Yes
Single-phase hysteresis possible
No
Three-phase hysteresis possible
Yes
Contains function DC-under voltage
No
Contains function DC-over voltage
No
Contains function DC-voltage hysteresis
No
Voltage measuring range 1
(V)
160 - 230
Voltage measuring range 2
(V)
220 - 300
Type of voltage measuring range
AC
Rated control supply voltage at AC 50 Hz
(V)
160 - 500
Rated control supply voltage at AC 60 Hz
(V)
160 - 300
Voltage type for actuating
AC
Response value voltage
(V)
160 - 300
Min. adjustable delay-on energization time
(s)
0.2
Max. permitted delay-on energization time
(s)
0.2
Min. adjustable off-delay time
(s)
0.1
Max. permitted off-delay time
(s)
30
Number of contacts as normally closed contact
0
Number of contacts as normally open contact
0
Number of contacts as change-over contact
2
Height
(mm)
78
Depth
(mm)
103.7
External power supply required
No
Stock and logistics
Height
0.109 m
Width
0.097 m
Depth
0.03 m
Packaging
Package
Weight
0.132 kg
HS code
85364900
