ABB Components
2CCF019605R0001

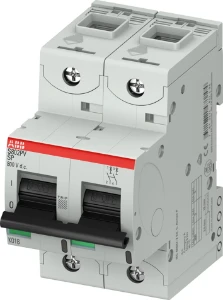

Miniature circuit breaker (MCB)
Manufacturer part number: 2CCF019605R0001
Serie: System pro M compact
Type: S 802PV SP63
EAN-code: 7612271471354
SKU Omnical: 3055439
Stock: 0.
Estimated lead time: 8 days *
PreOrder
ZRG
$
676.41
per item
$
482.96
per item
USD | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
2CCF019605R0001 ABB Components Miniature circuit breaker (MCB)
ABB Components Miniature circuit breaker (MCB) DC Installatieautomaat 2P, 63A, 5kA 800VDX
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Rated current
(A)
63
Number of poles (total)
2
Concurrently switching neutral conductor
No
Release characteristic
B
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
(kA)
5
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
(kA)
5
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
(kA)
5
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
(kA)
5
Rated voltage
(V)
800
Additional equipment possible
No
Voltage type
DC
Current limiting class
3
Over voltage category
3
Pollution degree
2
Width in number of modular spacings
2
Built-in depth
(mm)
111
Degree of protection (IP)
IP20
Number of protected poles
2
Frequency
(Hz)
0 - 0
Suitable for flush-mounted installation
No
Rated insulation voltage Ui
(V)
1500
Rated impulse withstand voltage Uimp
(kV)
8
Ambient temperature during operating
(°C)
-25 - 60
Connectable conductor cross section multi-wired
(mm²)
0 - 70
Connectable conductor cross section solid-core
(mm²)
0 - 50
Explosion-proof
No
Flush-mounted installation
No
Power loss
(W)
12.8
Stock and logistics
Height
0.099 m
Width
0.105 m
Depth
0.06 m
Packaging
Package
Weight
490 kg
HS code
85362010
