ABB Components
2CDS272337R0054

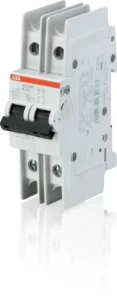

Miniature circuit breaker (MCB)
Manufacturer part number: 2CDS272337R0054
Serie: System pro M compact
Type: SU 202M C 5
EAN-code: 4016779931038
SKU Omnical: 2283137
Stock: 0.
Estimated lead time: 8 days *
PreOrder
ZRI
$
195.84
per item
$
139.83
per item
USD | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
2CDS272337R0054 ABB Components Miniature circuit breaker (MCB)
ABB Components Miniature circuit breaker (MCB) Installatieautomaat UL489 2 polig, C Kar, 5A, 10kA 480Y-277VAC, 96VDC
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Rated current
(A)
5
Number of poles (total)
2
Concurrently switching neutral conductor
No
Release characteristic
C
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
(kA)
11.2
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
(kA)
15
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
(kA)
15
Rated voltage
(V)
440
Additional equipment possible
Yes
Voltage type
AC/DC
Current limiting class
3
Over voltage category
3
Pollution degree
3
Width in number of modular spacings
2
Built-in depth
(mm)
69
Degree of protection (IP)
IP20
Number of protected poles
2
Frequency
(Hz)
50 - 60
Suitable for flush-mounted installation
No
Rated insulation voltage Ui
(V)
440
Rated impulse withstand voltage Uimp
(kV)
4
Ambient temperature during operating
(°C)
-25 - 55
Connectable conductor cross section multi-wired
(mm²)
0.75 - 25
Connectable conductor cross section solid-core
(mm²)
0.75 - 35
Explosion-proof
No
Flush-mounted installation
No
Power loss
(W)
2.6
Stock and logistics
Height
0.08 m
Width
0.12 m
Depth
0.19 m
Packaging
Package
Weight
0.25 kg
HS code
85362010
