ABB Components
2CDS383001R0505

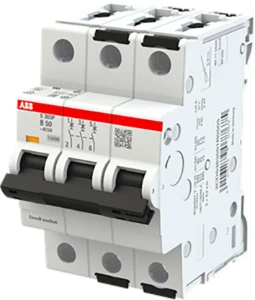

Miniature circuit breaker (MCB)
Manufacturer part number: 2CDS383001R0505
Serie:
Type: S 303P B50
EAN-code: 4016779077675
SKU Omnical: 4189301
Stock: 0.
Estimated lead time: 14 days *
PreOrder
ZQU
$
315.28
per item
$
220.69
per item
USD | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
2CDS383001R0505 ABB Components Miniature circuit breaker (MCB)
ABB Components Miniature circuit breaker (MCB) Installatie automaat 25kA, 3P, Kar B50A
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Rated current
(A)
50
Number of poles (total)
3
Concurrently switching neutral conductor
No
Release characteristic
B
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
(kA)
15
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
(kA)
25
Rated voltage
(V)
415
Additional equipment possible
Yes
Voltage type
Other
Over voltage category
4
Pollution degree
3
Width in number of modular spacings
3
Built-in depth
(mm)
69
Degree of protection (IP)
IP20
Number of protected poles
3
Frequency
(Hz)
50 - 60
Rated insulation voltage Ui
(V)
500
Rated impulse withstand voltage Uimp
(kV)
6
Ambient temperature during operating
(°C)
-40 - 70
Connectable conductor cross section multi-wired
(mm²)
0.75 - 25
Connectable conductor cross section solid-core
(mm²)
0.75 - 35
Explosion-proof
No
Flush-mounted installation
No
Power loss
(W)
11.1
Stock and logistics
Height
0.08 m
Width
0.092 m
Depth
0.058 m
Packaging
Package
Weight
0.372 kg
HS code
85362010
