ABB Components
2CMA170522R1000

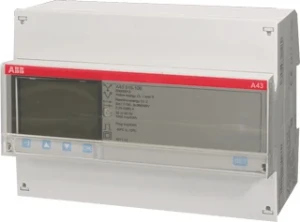

Kilowatt-hour meter
Manufacturer part number: 2CMA170522R1000
Serie: System pro M compact
Type: A43 212-100
EAN-code: 7392696705226
SKU Omnical: 1138612
Stock: 0.
Estimated lead time: 8 days *
PreOrder
ZQD
$
1,302.66
per item
$
1,264.89
per item
CAD | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
2CMA170522R1000 ABB Components Kilowatt-hour meter
ABB Components Kilowatt-hour meter Energiemeter 3 fase direct 80A Klasse B, puls uitgang, MID Modbus RS48
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Type of meter
Electronic
Nominal current (In)
(A)
5
Max. current (Imax)
(A)
80
Nominal voltage (Un) N-L
(V)
57 - 288
Nominal voltage (Un) L-L
(V)
100 - 500
Width
(mm)
123
Frequency
(Hz)
50 - 60
Accuracy class
B
Pole type
Four conductor
Model
Direct measurement
Energy type
Effective power
Suitable for
Purchase/supply
Tariff type
One-tariff
Measurement type load profile
No
Escapement mechanism
Yes
Calibrated
Yes
Approval
Measuring Instruments Directive
Pulse output
Electrical
Pulse type
S0
Pulse rate
(Imp/kWh (kvarh))
1 - 9999
Type of indication
Digital
Mounting method
DRA (DIN-rail adapter)
Width in number of modular spacings
7
Type of interface
RS-485
EEC40 signature
No
With lock code
No
Number of positions total (counter)
7
Degree of protection (IP)
IP20
Height
(mm)
26.5
Depth
(mm)
65
Power consumption
(W)
0.807
Stock and logistics
Height
0.068 m
Width
0.098 m
Depth
0.144 m
Packaging
Package
Weight
0.448 kg
HS code
90283019
