ABB Components
2CSF204123R3800

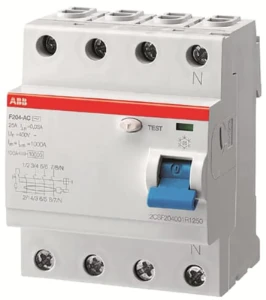

Residual current circuit breaker (RCCB)
Manufacturer part number: 2CSF204123R3800
Serie: System pro M compact
Type: F204 A-80/0,3
EAN-code: 8012542918806
SKU Omnical: 4126901
Stock: 0.
Estimated lead time: 36 days *
PreOrder
ZQY
€
594,00
per item
€
415,80
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
2CSF204123R3800 ABB Components Residual current circuit breaker (RCCB)
ABB Components Residual current circuit breaker (RCCB) Residual Current device 4 pol, 80A, 300mA, A type neutral left
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Number of poles
4
Rated fault current
(A)
300
Rated current
(A)
80
Leakage current type
A
Selective protection
No
Rated voltage
(V)
400
Mounting method
DIN rail
Short-circuit breaking capacity (Icw)
(kA)
1
Frequency
Other
Additional equipment possible
Yes
Degree of protection (IP)
IP2X
Width in number of modular spacings
4
Built-in depth
(mm)
69
Short-time delayed tripping
No
Rated insulation voltage Ui
(V)
500
Rated impulse withstand voltage Uimp
(kV)
4
With interlocking device
Yes
Ambient temperature during operating
(°C)
-25 - 55
Pollution degree
2
Connectable conductor cross section multi-wired
(mm²)
35 - 35
Connectable conductor cross section solid-core
(mm²)
35 - 35
Voltage type
AC
Explosion-proof
No
Stock and logistics
Height
0.082 m
Width
0.08 m
Depth
0.094 m
Packaging
Package
Weight
0.38 kg
HS code
85363030
