ABB Components 2CSF204501R1800
ABB Components

2CSF204501R1800

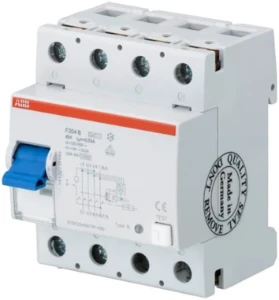

Residual current circuit breaker (RCCB)
Manufacturer part number: 2CSF204501R1800
Serie: System pro M compact
Type: F 204B 80/0,03

EAN-code: 8012542988601
SKU Omnical: 3052943

Stock: 0.

Estimated lead time: 47 days *
PreOrder

ZQY
2.492,00 per item
1.744,40 per item
EUR | Excluding VAT

Quantity
items
Add to cart
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
paypal
visa
mastercard
wire-transfer
2CSF204501R1800 ABB Components Residual current circuit breaker (RCCB)
ABB Components Residual current circuit breaker (RCCB) Aardlekschakelaar 4 polig, 80A, 30mA B type
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.

Datasheet

Number of poles
4
Rated voltage (V)
400
Rated current (A)
80
Rated fault current (A)
0.03
Mounting method
DIN rail
Leakage current type
B
Selective protection
No
Short-circuit breaking capacity (Icw) (kA)
1
Surge current capacity (kA)
3
Frequency
50 Hz
Additional equipment possible
Yes
Degree of protection (IP)
IP2X
Construction size (according to DIN 43880)
4
Width in number of modular spacings
4
Built-in depth (mm)
69
Short-time delayed tripping
Yes
Rated insulation voltage Ui (V)
500
Rated impulse withstand voltage Uimp (kV)
4
With interlocking device
Yes
Ambient temperature during operating (°C)
-25 - 55
Pollution degree
2
Connectable conductor cross section multi-wired (mm²)
35 - 35
Connectable conductor cross section solid-core (mm²)
35 - 35
Voltage type
AC
Explosion-proof
No
Power loss (W)
3.5

Stock and logistics

Height
0.082 m
Width
0.08 m
Depth
0.094 m

Packaging
Package
Weight
0.5 kg
HS code
85363030
