ABB Components
2CSG152436R1202

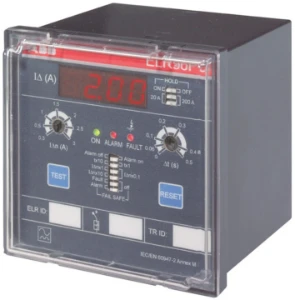

Residual current monitoring relay
Manufacturer part number: 2CSG152436R1202
Serie: System pro M compact
Type: ELR96PD
EAN-code: 8012542733522
SKU Omnical: 2286857
Stock: 0.
Estimated lead time: 54 days *
PreOrder
ZQY
€
1.242,00
per item
€
869,40
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
2CSG152436R1202 ABB Components Residual current monitoring relay
ABB Components Residual current monitoring relay ELR front paneel aardfout relay
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Type of electric connection
Screw connection
Rated control supply voltage at AC 50 Hz
(V)
110 - 400
Rated control supply voltage at AC 60 Hz
(V)
110 - 400
Voltage type for actuating
AC
Width
(mm)
96
With detachable clamps
Yes
Function
For AC-current system
Rated voltage
(V)
110 - 400
Rated frequency
(Hz)
50 - 60
Response value amperage 1
(mA)
0.03 - 30
Response value amperage 2
(mA)
30000 - 30000
Min. adjustable delay-on energization time
(s)
0
Max. permitted delay-on energization time
(s)
5
Indication of difference current
Yes
Error registration possible
Yes
Number of contacts as normally open contact
2
Height
(mm)
96
Depth
(mm)
74
Stock and logistics
Height
0.16 m
Width
0.11 m
Depth
0.115 m
Packaging
Package
Weight
0.454 kg
HS code
85363030
